Price:

From $9,995.00

Bespoke fit for:

Mercedes Sprinter 144"

2006 - PRESENT

Specifications

Kitchen
Worktop:

Blank top Sink Cut Out Cooler/Fridge Cut Out Sink & Cooler/Fridge Cut Outs

Electrics
Integrated Wiring Loom:

No Electrics Add Electrics

Material & Finish:

Birch

Variant

Check Eligibility

Pay over time with

.
See if you qualify at checkout.

Price:

$9,995.00

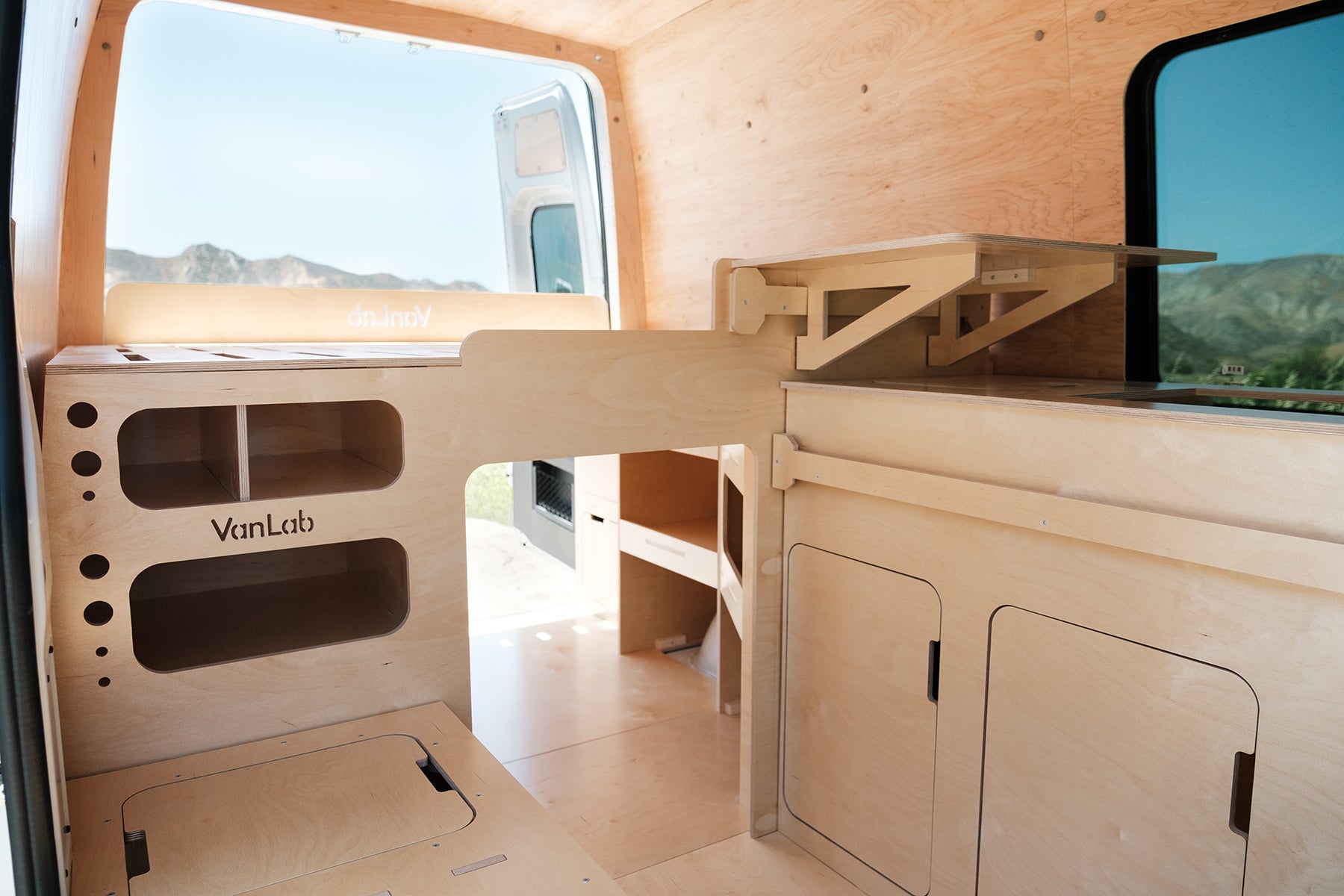

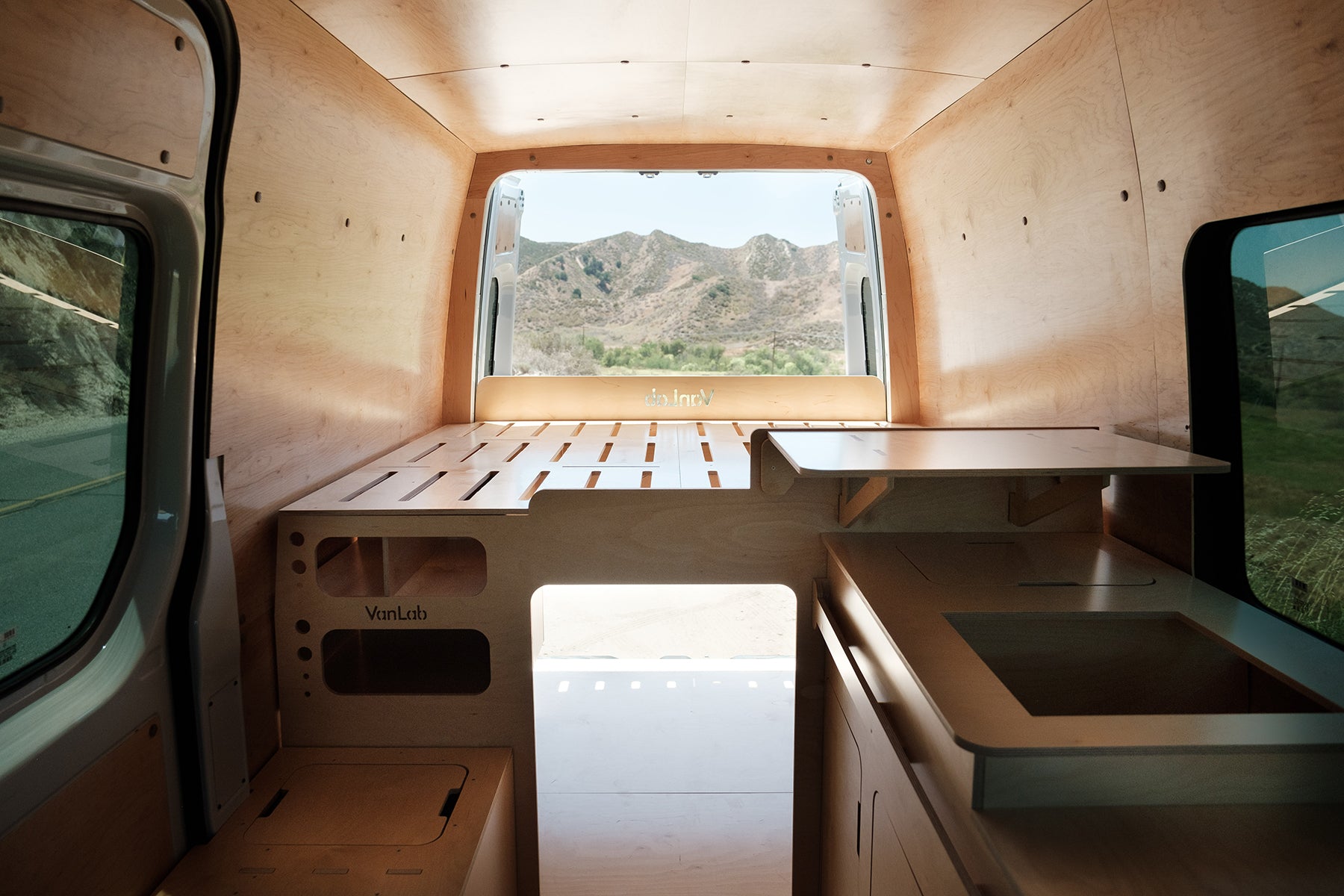

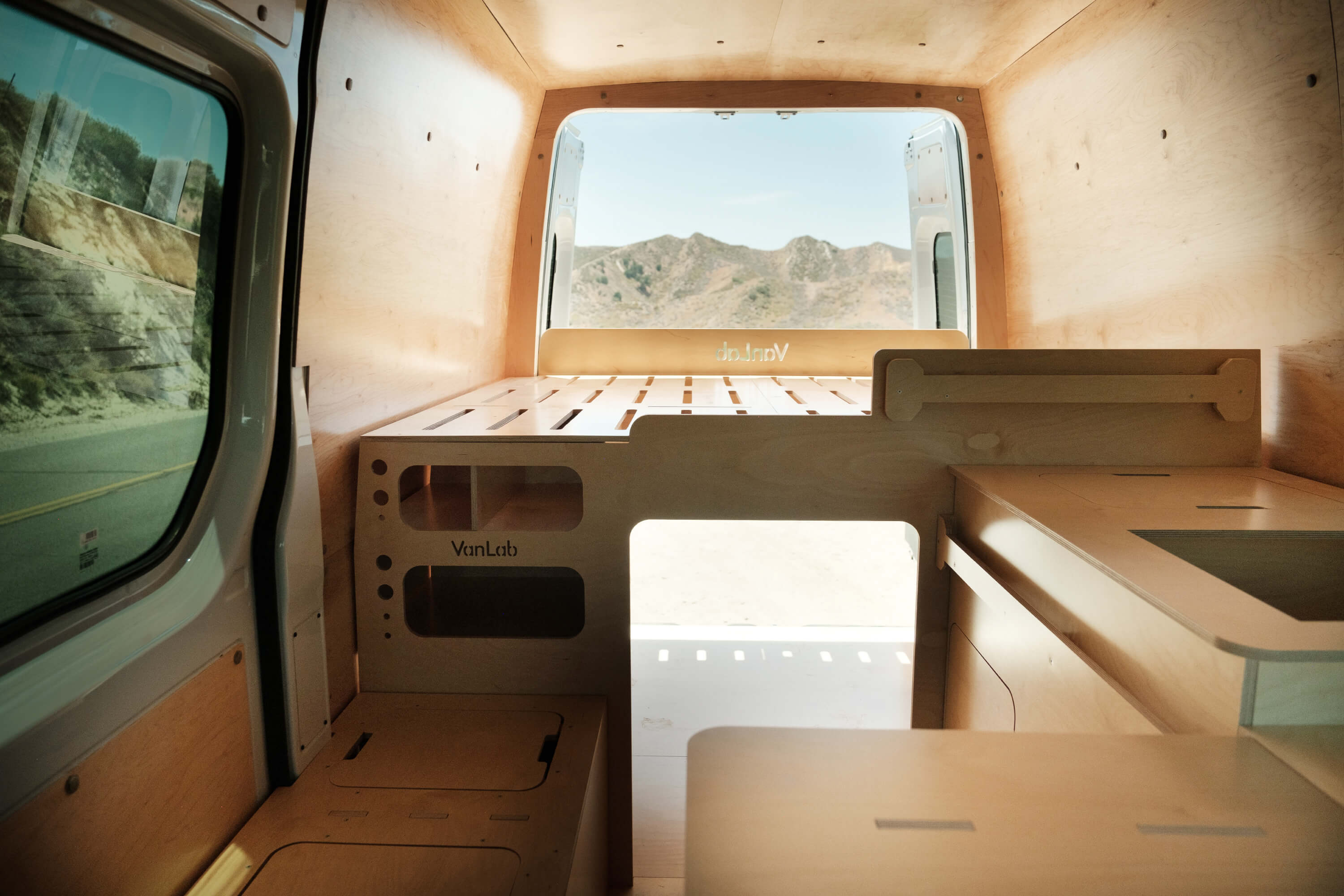

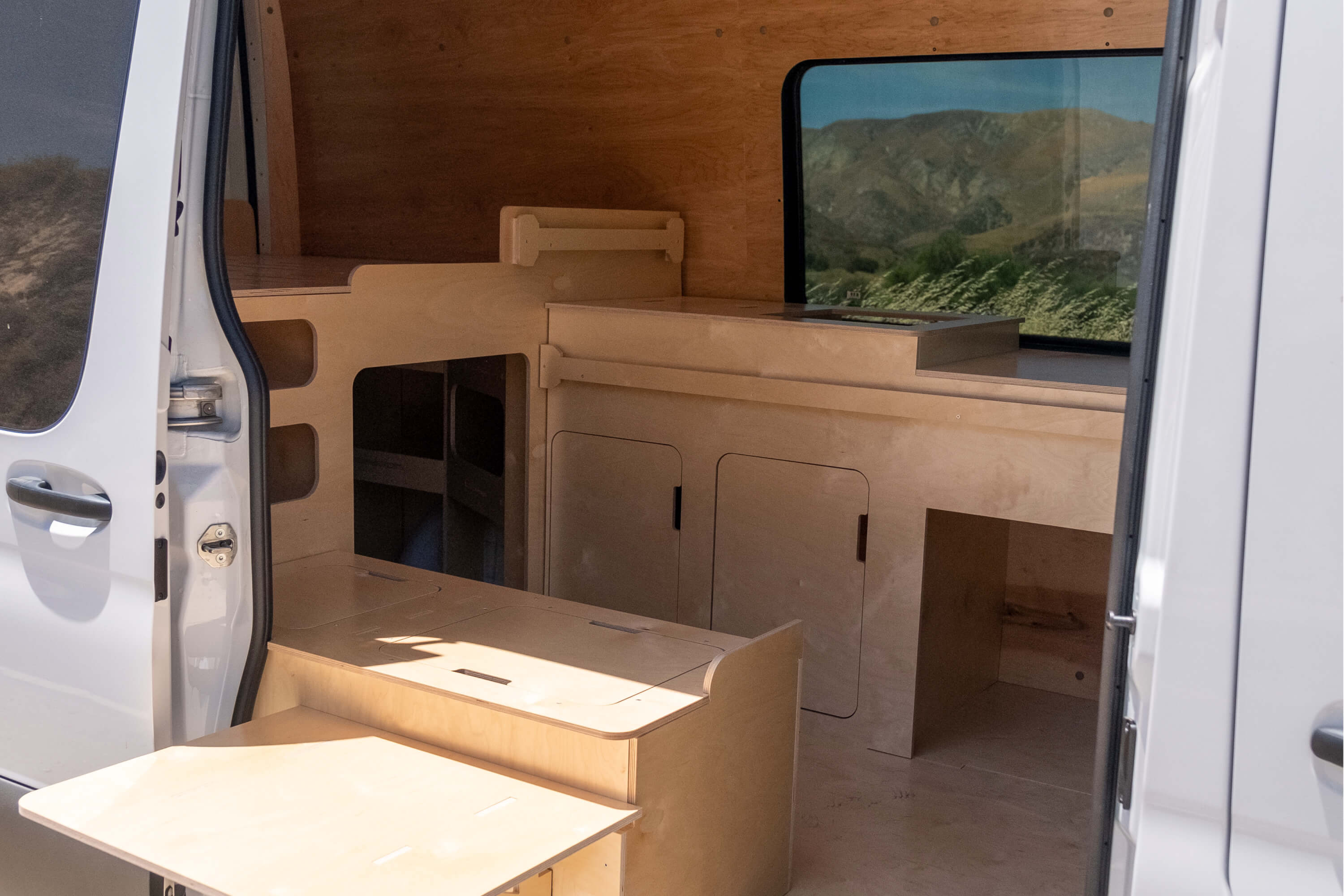

Introducing our Mercedes Sprinter 144” kit. Sitting in our medium sized van kits, the Sprinter is one of the most recognisable camper vans out there.

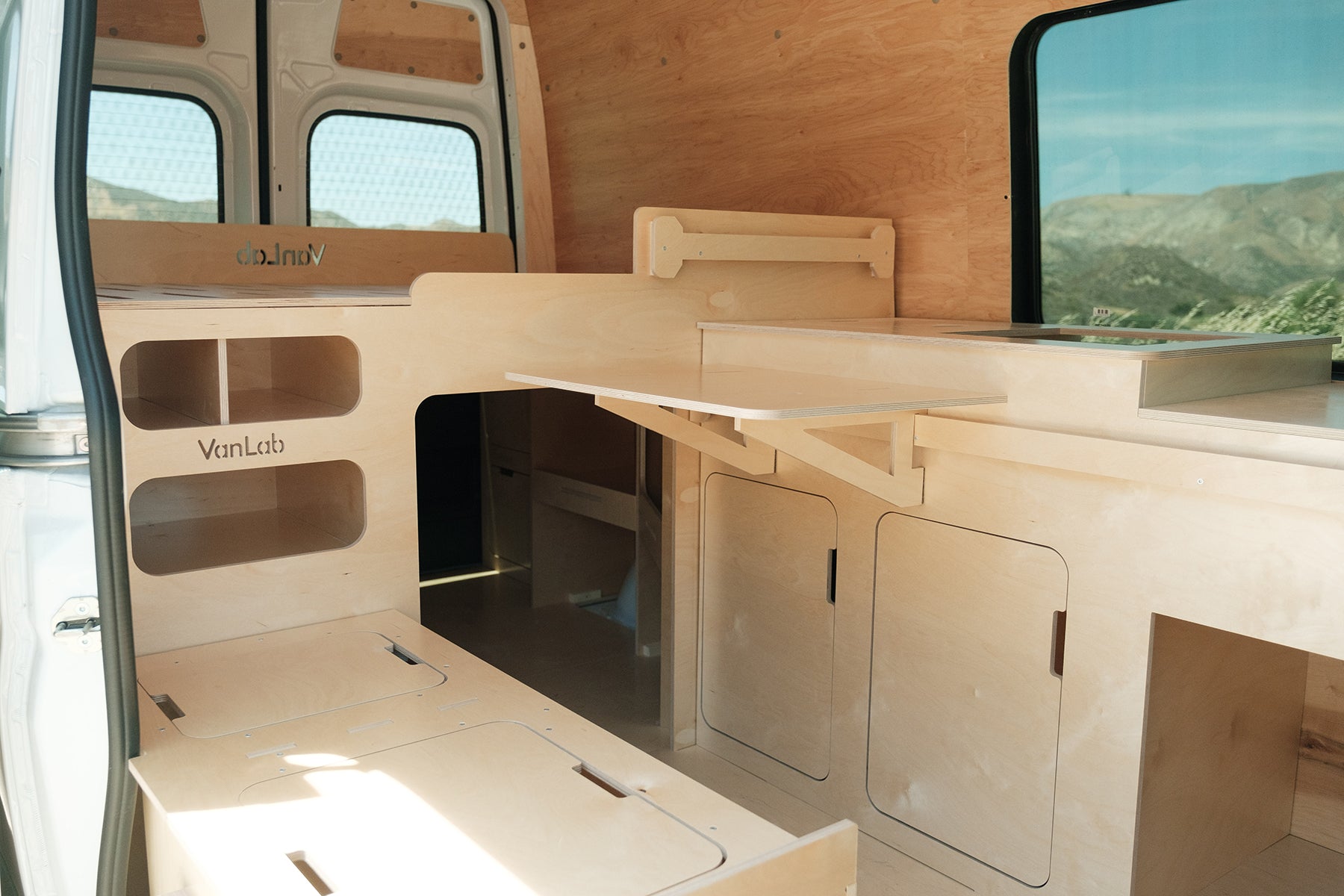

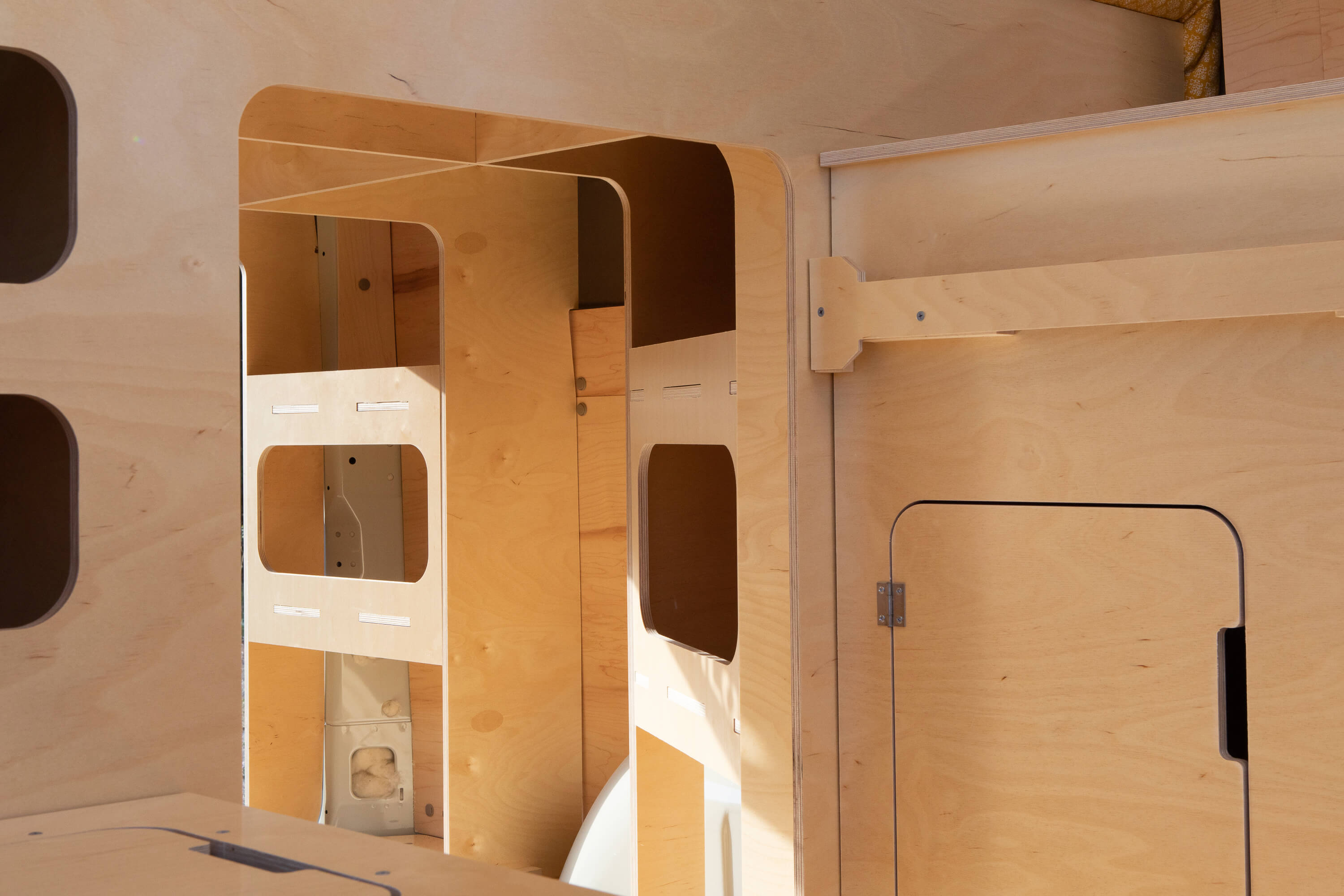

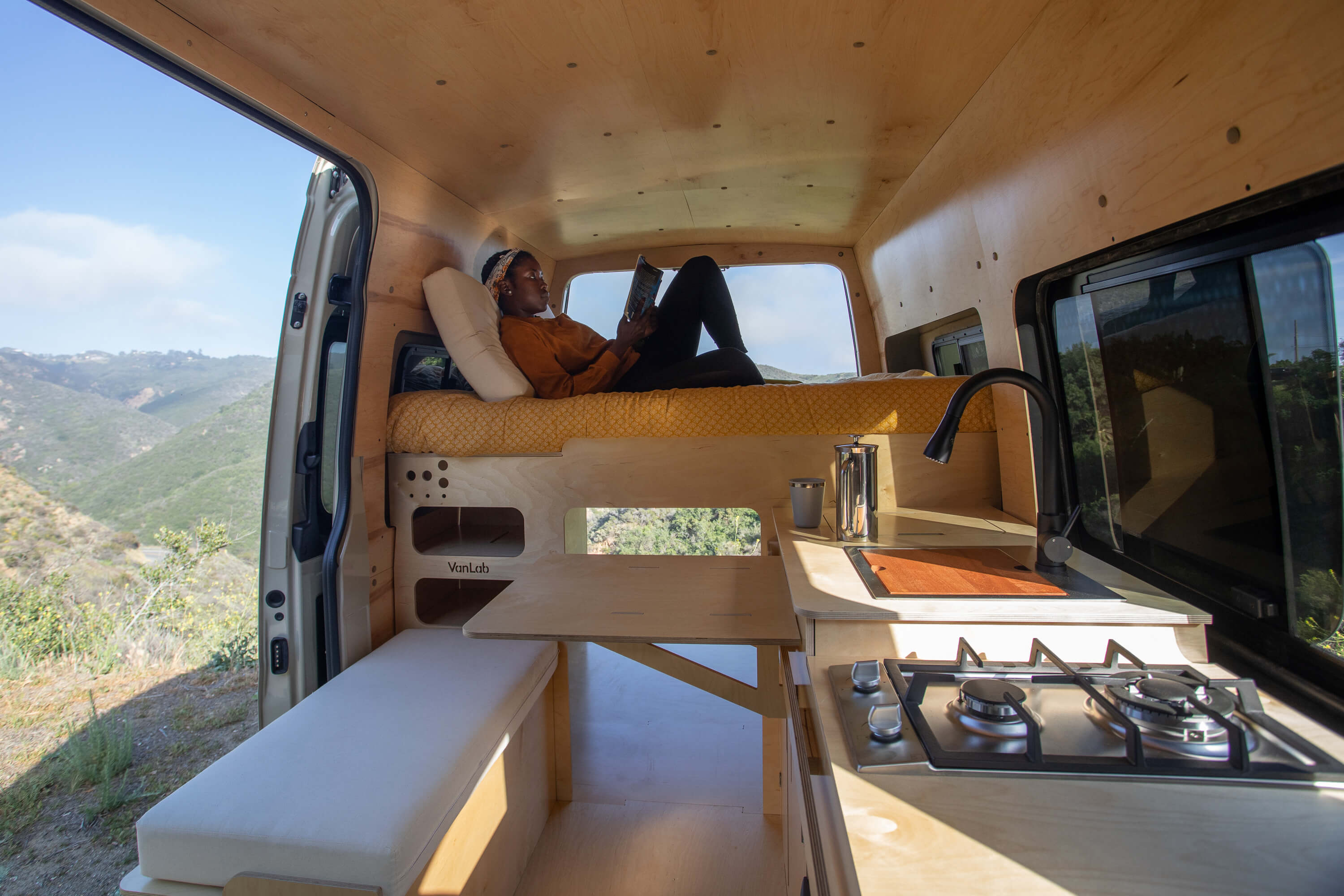

Our Mercedes Sprinter 144” kit is designed for 2 people to comfortably travel, work, eat and sleep. We have incorporated a large garage section underneath our raised bed, perfect for storing all your adventure gear, including bikes. To absolutely maximize the space and versatility within the Sprinter 144”, we have incorporated our innovative French-Cleat rail system. We have three rails around the van (kitchen, bed and outside), and the table simply drops on to these rails when needed.

Our kits are designed for quick assembly and engineered for DIY installation, so you can get going in no time! What’s our secret? We use 3D vehicle laser scans for every vehicle we work on, and the best 3D parametric design software on the market. Our lead engineers learned these skills while working at the peak of the automotive and aeronautical industries; one from McLaren designing supercars and one from Sikorsky designing helicopters.

We follow Poka-Yoke principles (mistake-proof design), inspired by the precision of automotive production lines. Just like a square peg in a square hole, every part is clearly labeled and engineered to fit perfectly in its designated spot. Whether it’s a unique component that fits only one way or a universal part that’s fully interchangeable, every VanLab kit is built for simplicity and reliability.

ALL our kits are made using the finest 9-ply ½” Baltic Birch Plywood, crafted to maximise durability versus cheaper alternatives whilst keeping weight to a minimum.

DOWNLOADS
GUIDES
Specifications
FAQ’s
REVIEWS

Download your installation manual here.

Download now

Watch the install videos here - Note, this is a universal install video. Detailed instructions are found in the manual.

Watch Now

Specifications

SPACES

BED

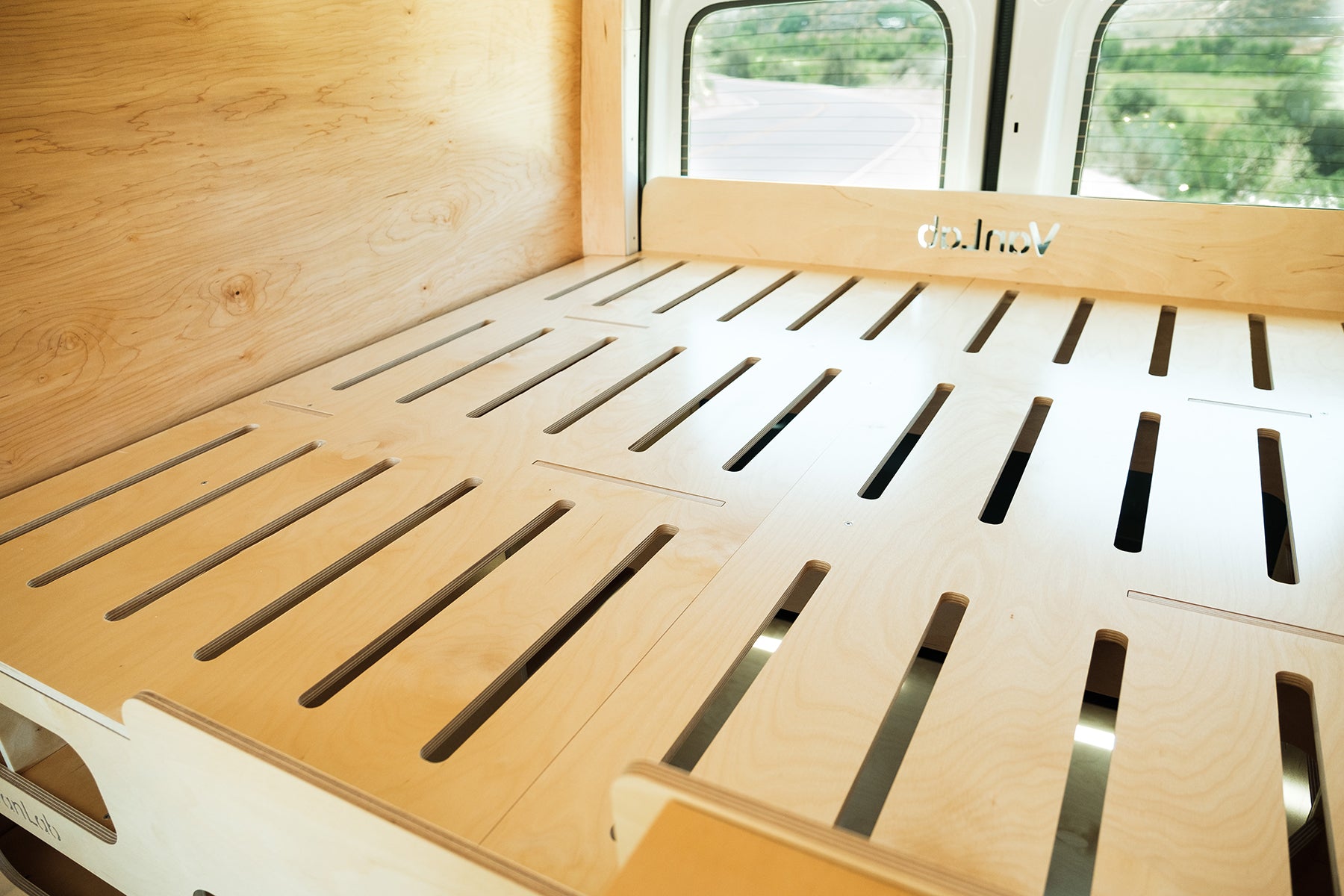

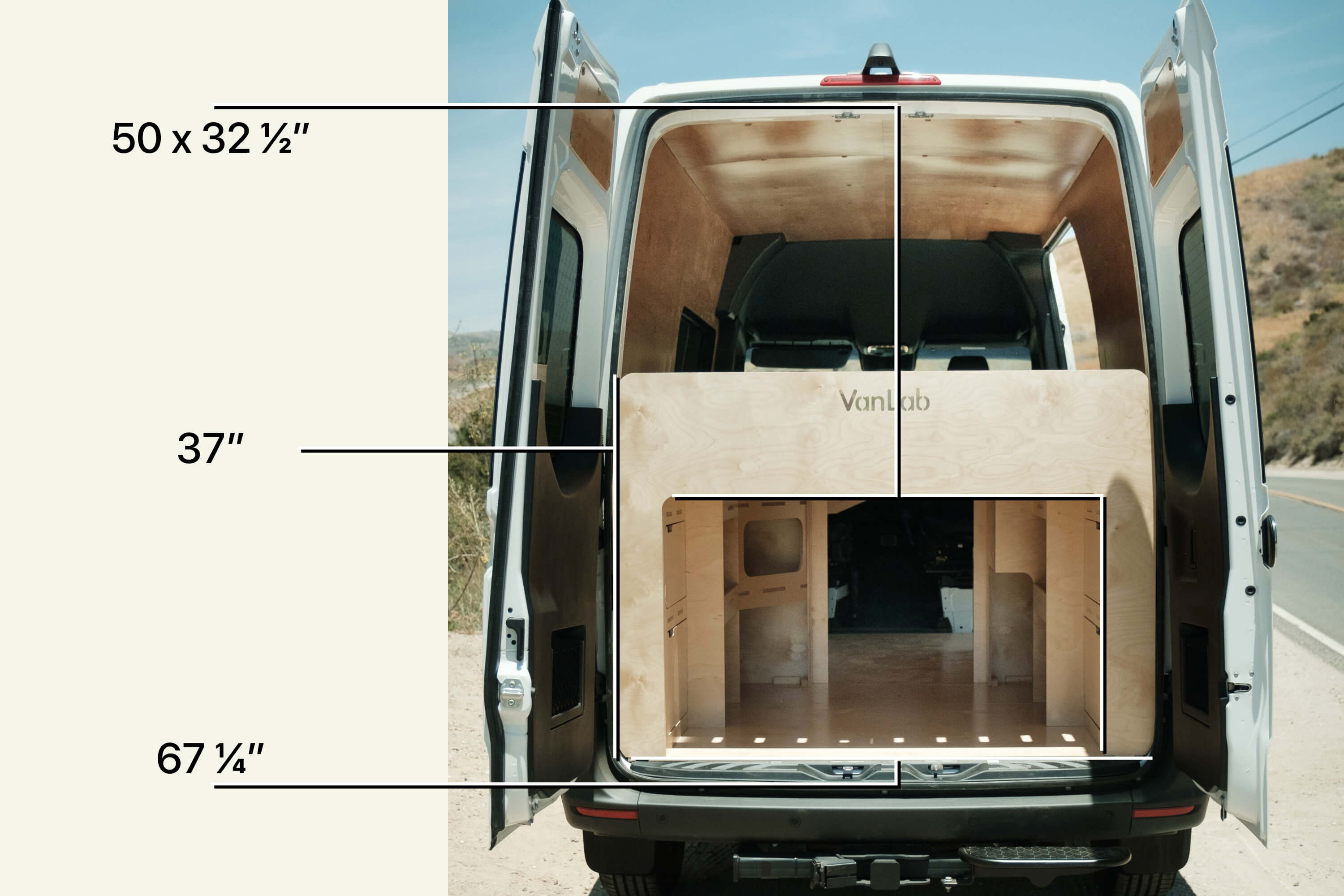

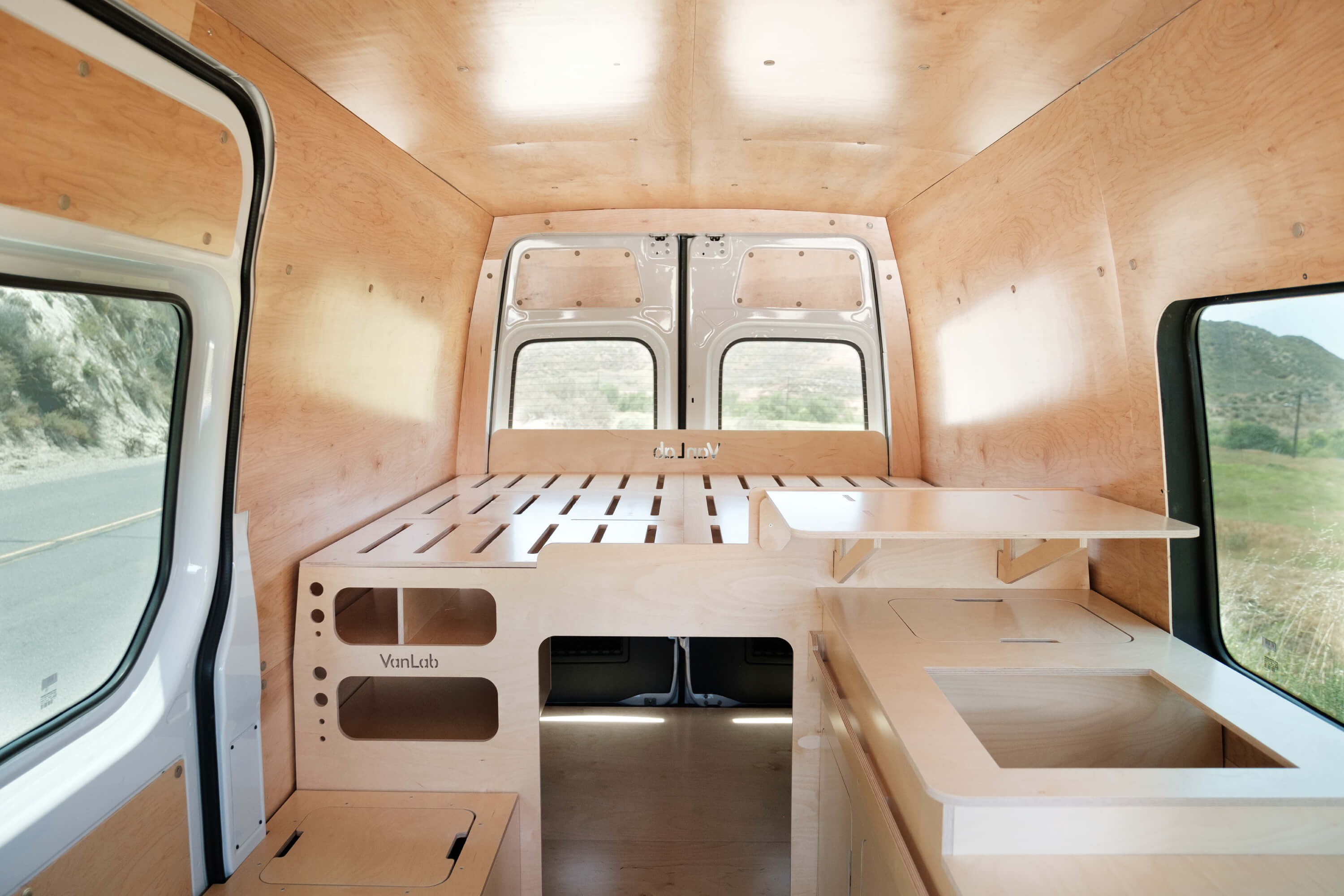

Raised bed platform designed for 2 people to sleep East West across the van.
Bed: 67 1/4" long x 61" Wide. Compatible with flares/pop-outs for 79" bed length if required
Bed Platform height: 37"(bedding and cushions not included)

STORAGE

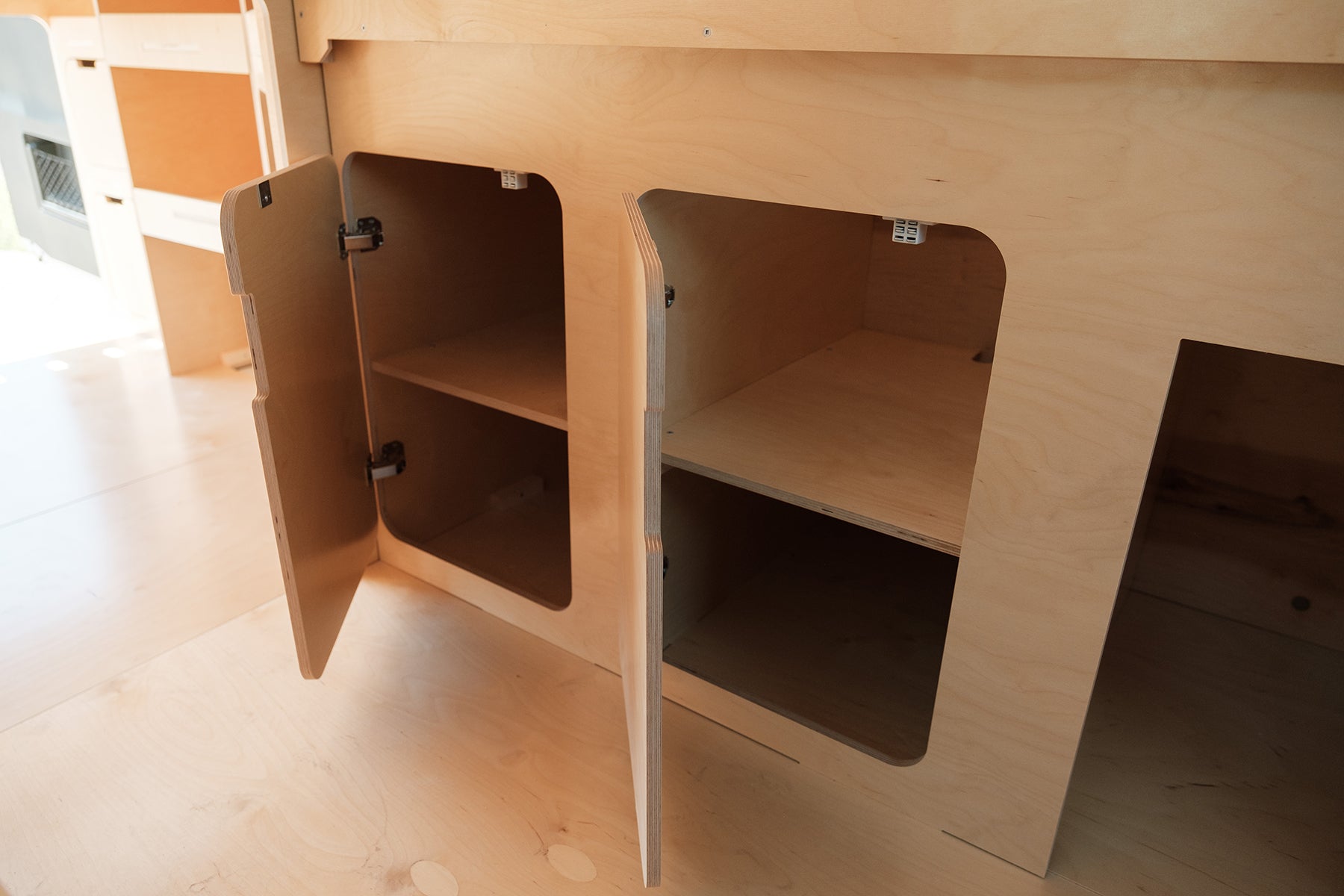

Kitchen Storage for 12 gallons of water, 65L fridge, and additional cupboard for kitchen items (8.5ft3 kitchen storage)
Benchtop space for double burner, sink and faucet

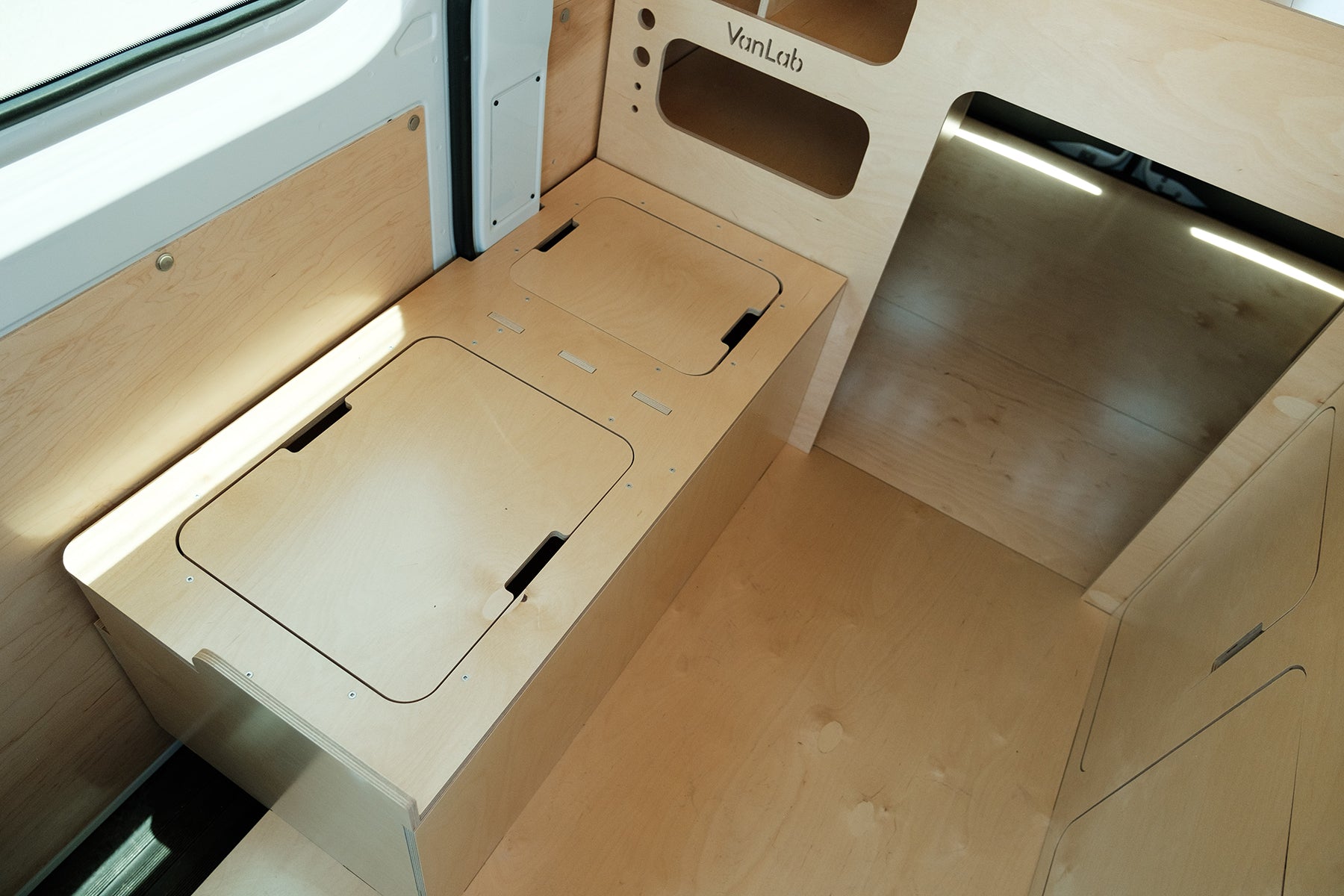

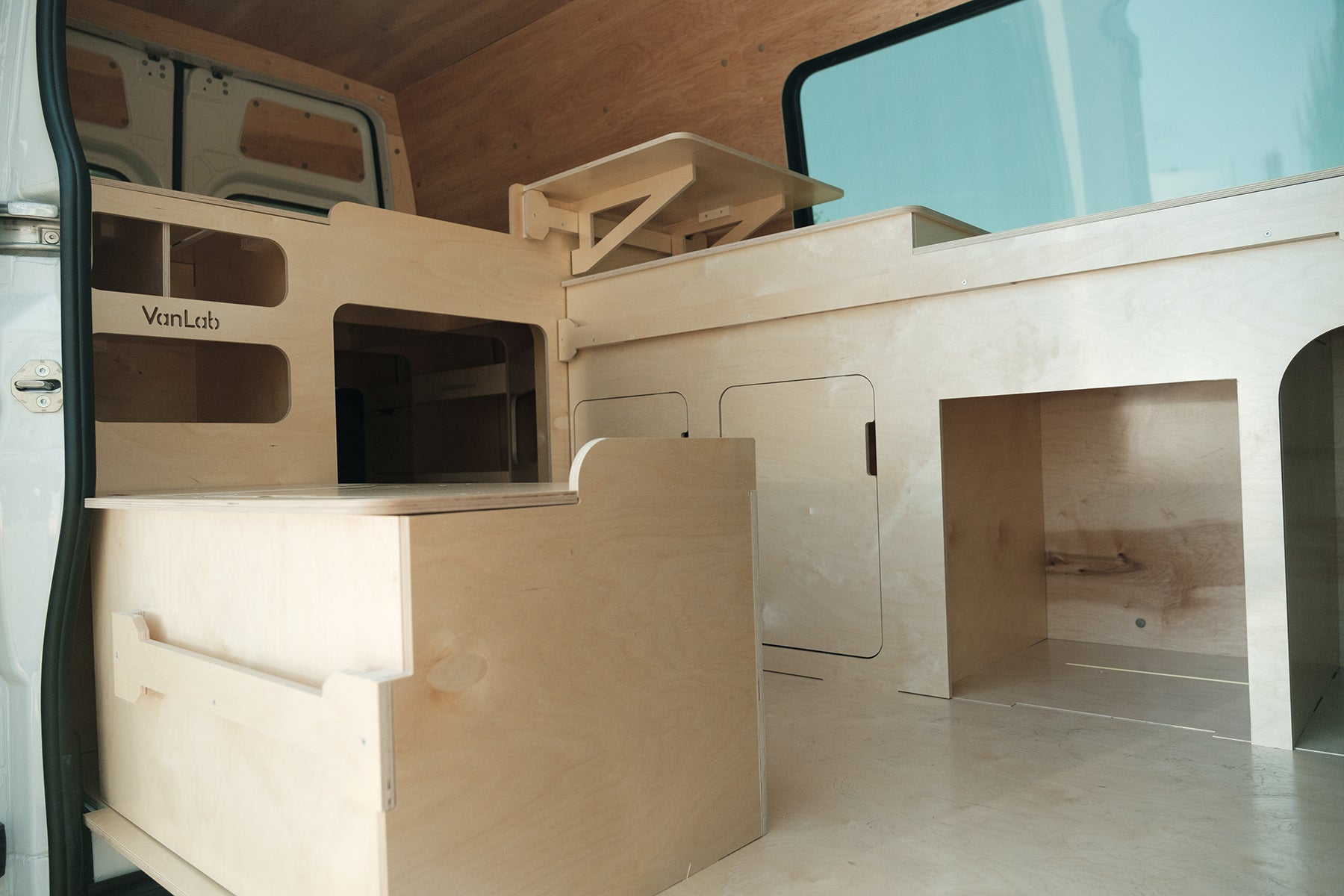

Bench seat designed for 2 people, with internal storage for battery and electrical component storage (7.05ft3 bench storage)

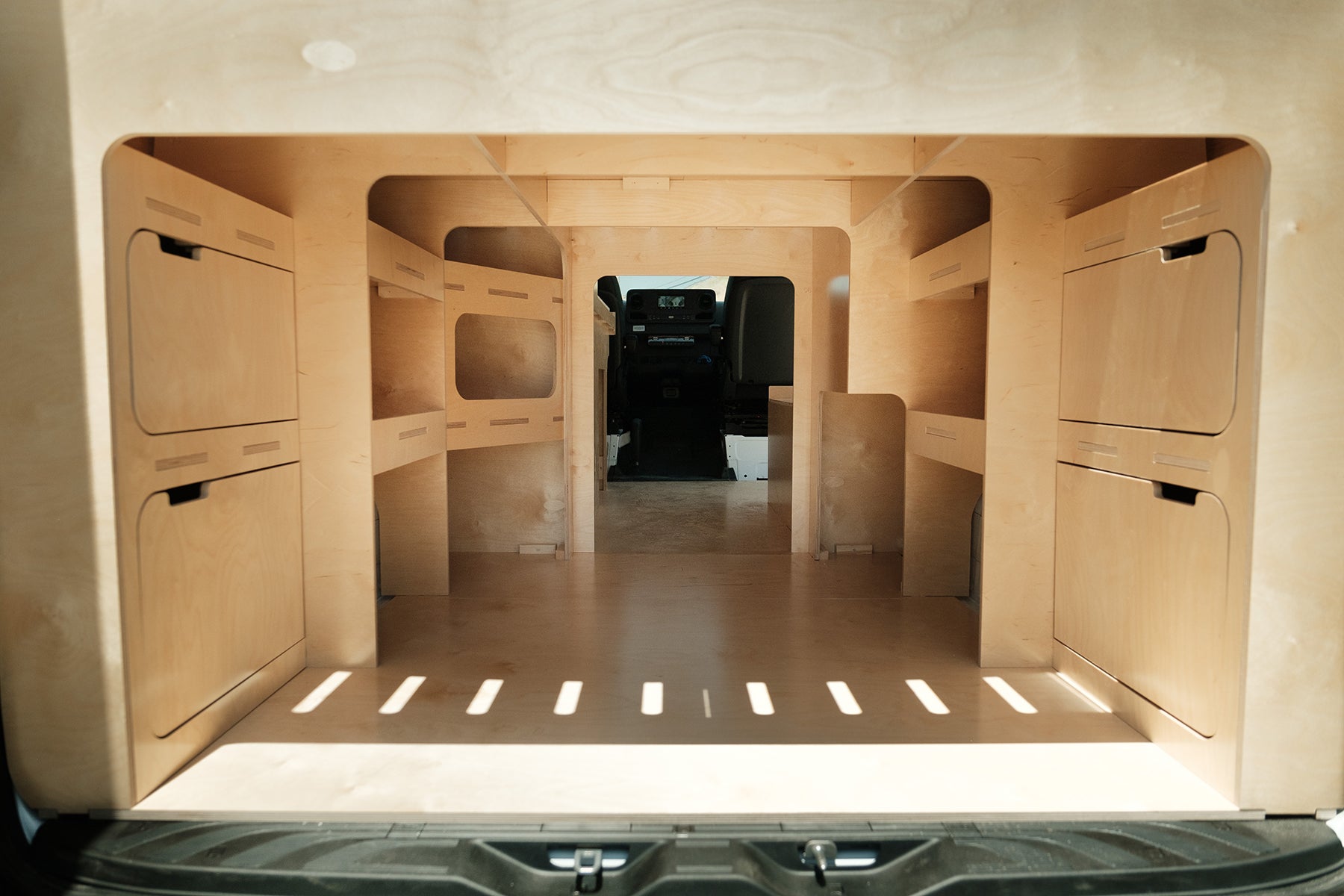

GARAGE

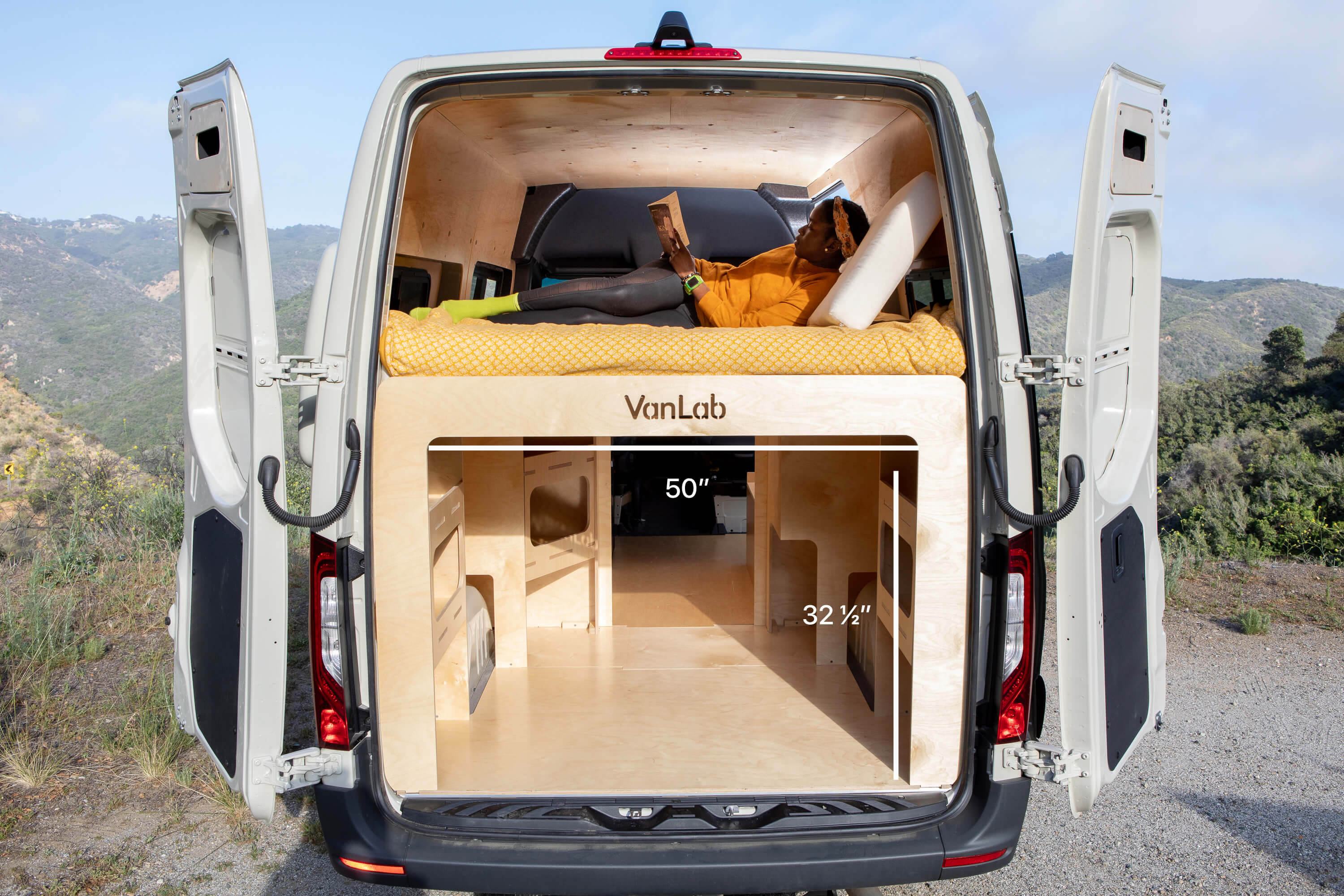

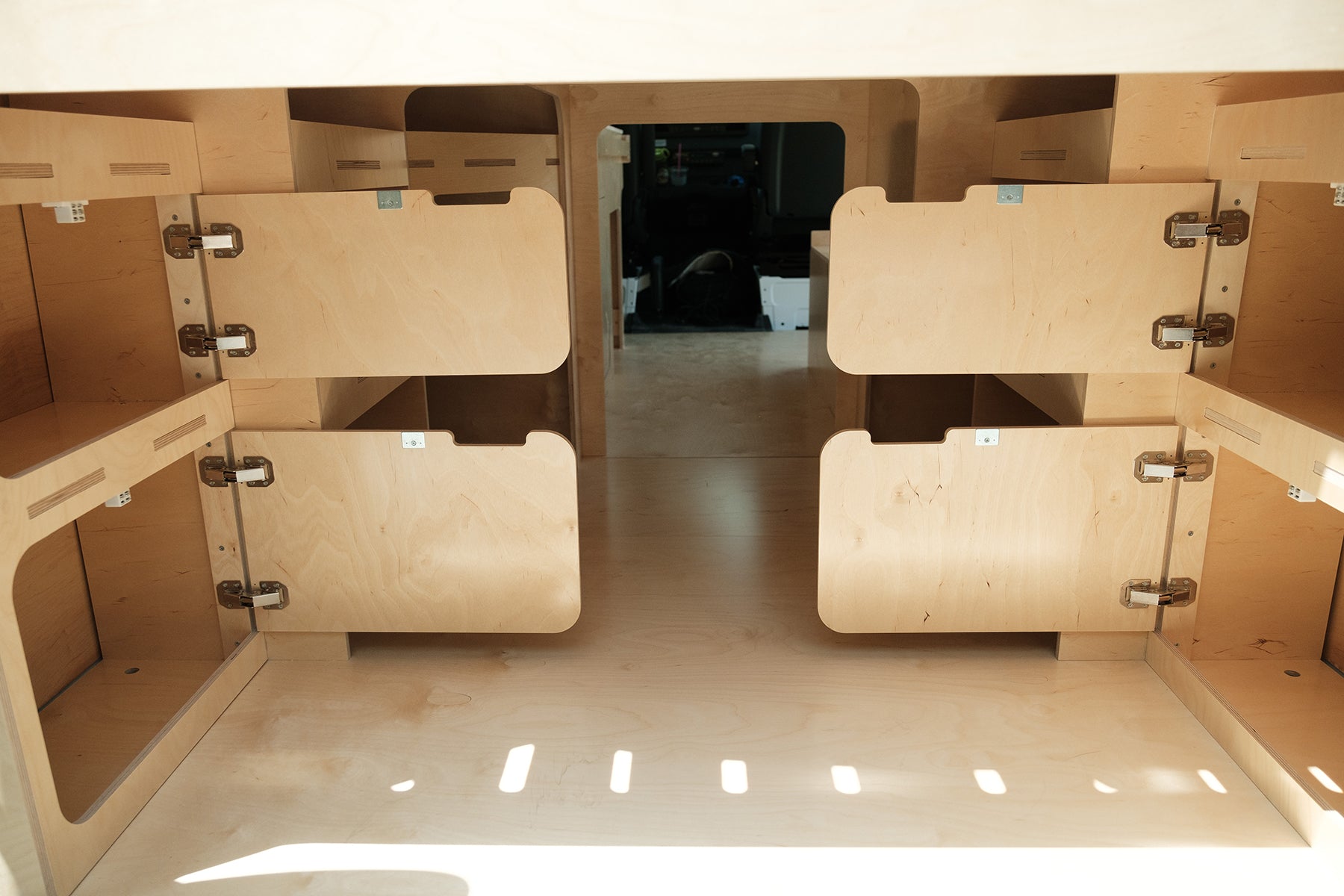

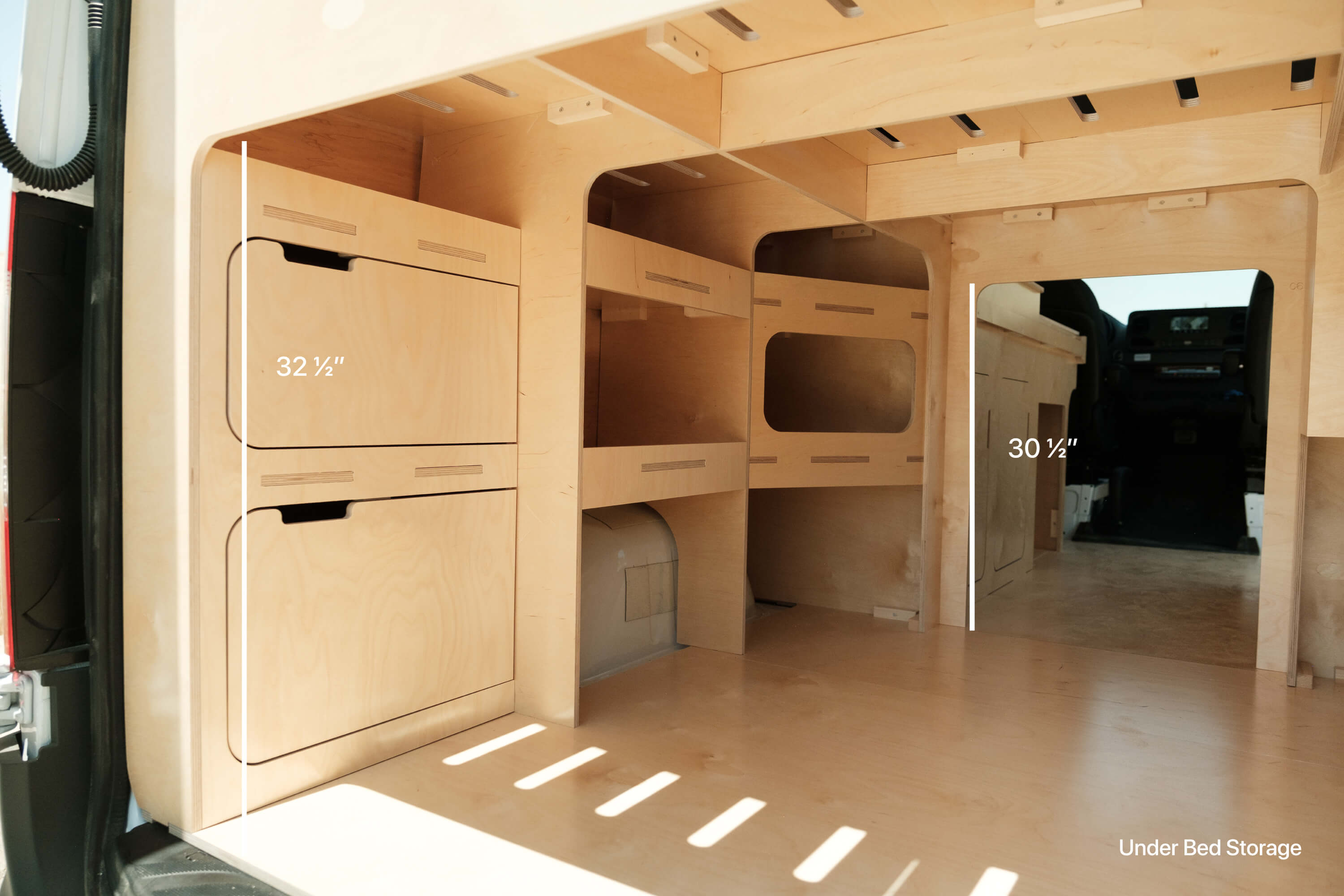

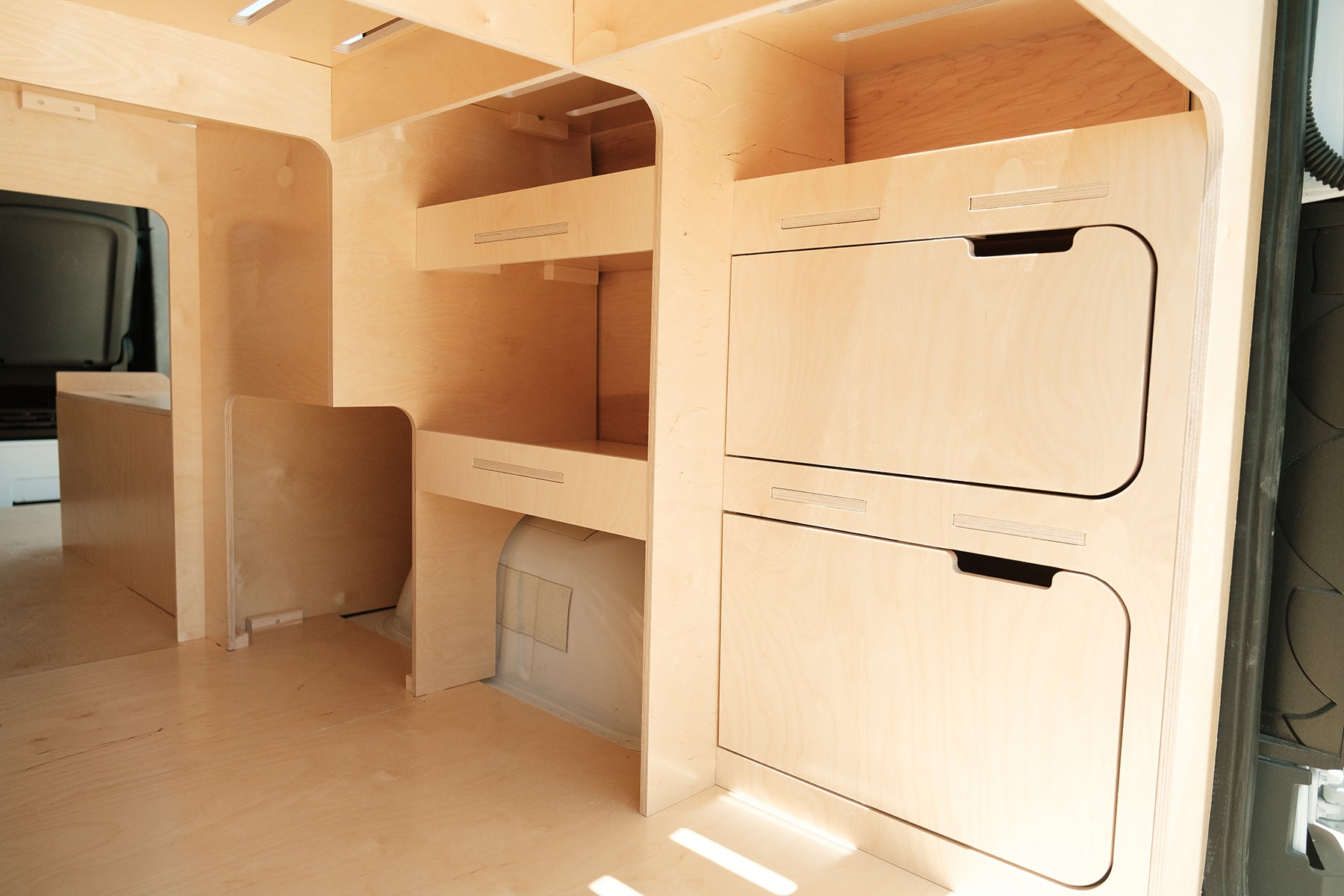

Garage storage with 9 individual cubbies, and a central area sized for bike storage (101ft3 total)

Appliances

WATER STORAGE

Water Storage Size: 17.5” wide, 23” deep, 35” tall (including area for sink). The cupboard is approx 8 ft3 and designed for 12 Gallons of water storage.

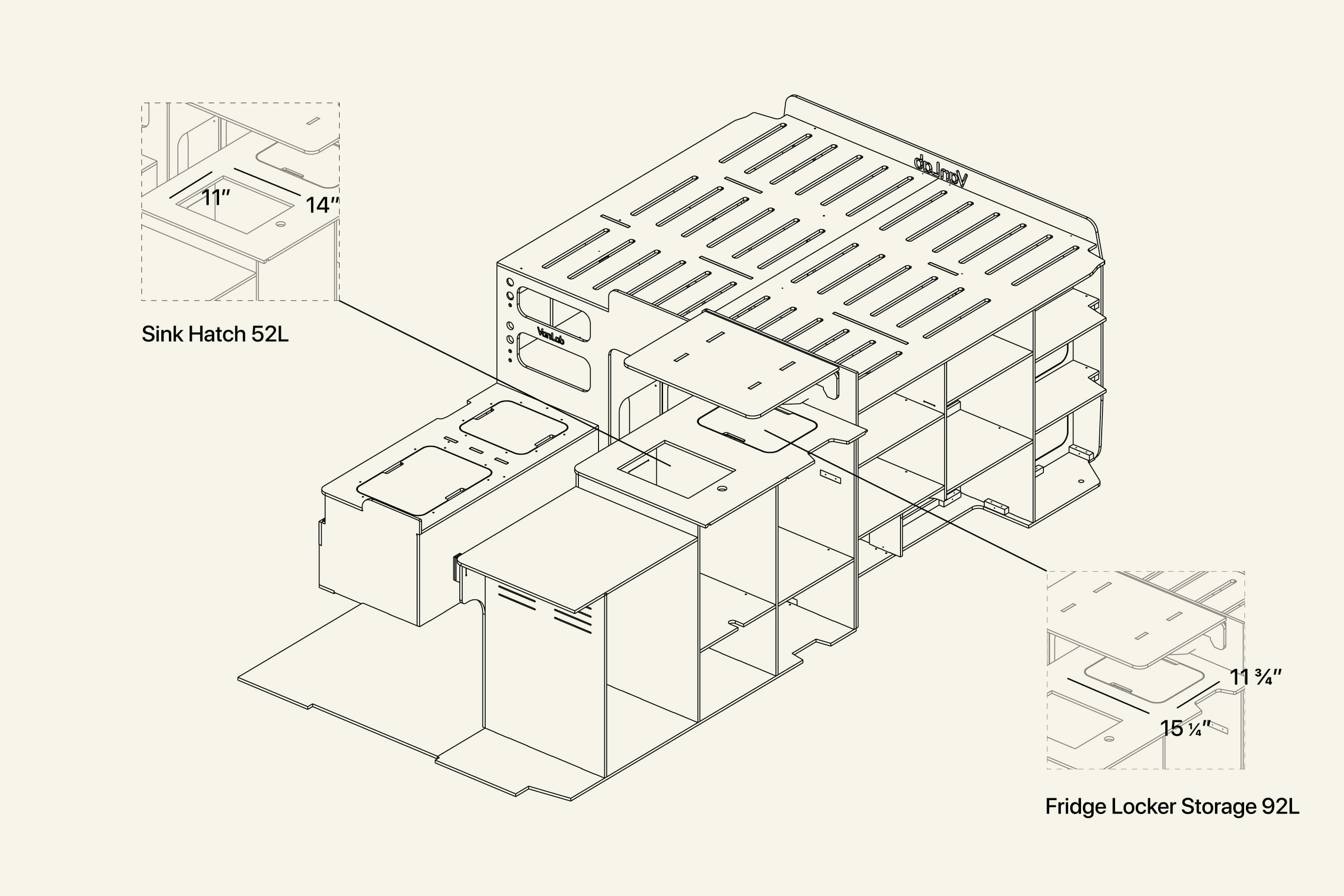

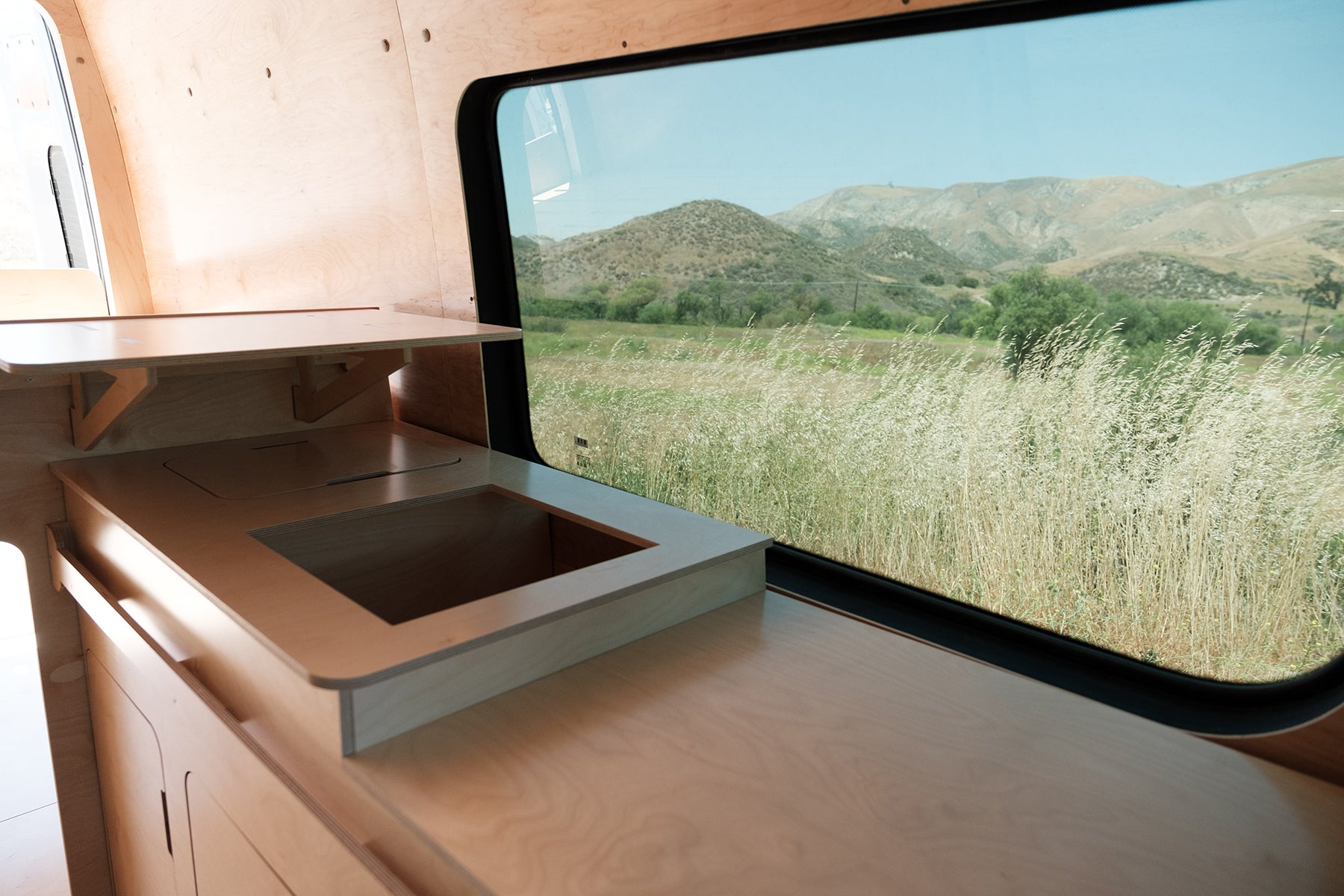

SINK & FAUCET

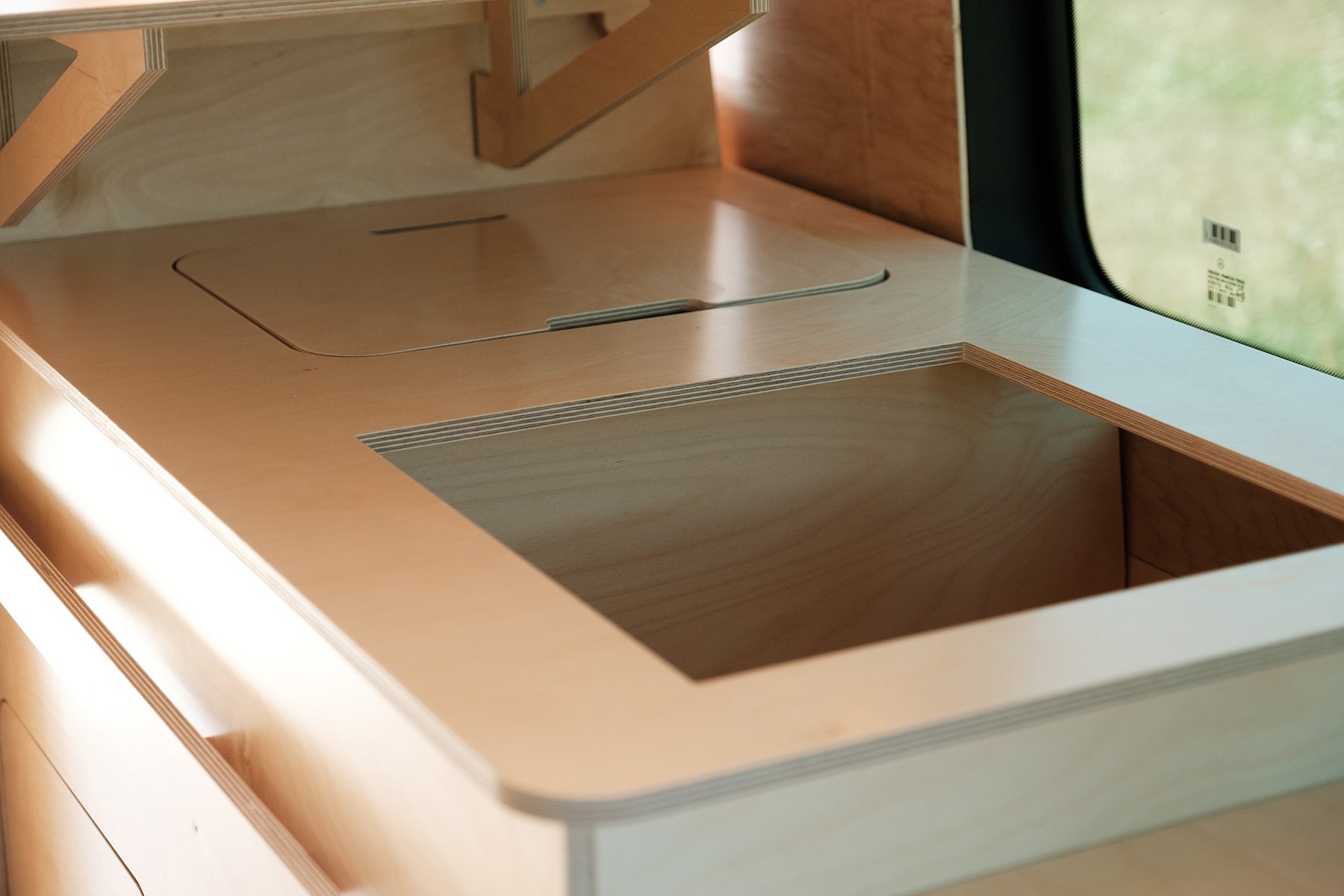

Pre-Cut Sink Opening: 12” wide, 14” deep
Recommended Sink: TORVA 13” x 15” RV Sink with foldable Faucet
Recommended Faucet: Included with Sink

Please see this link to the recommended sink

FRIDGE

Pre-cut Fridge Opening: 17.75” wide, 21” tall
Fridge Depth: 19.4”
Recommended fridge: Isotherm 65 Elegance Black, 3 sided flange; 2.3cu.ft. 12V Fridge/Freezer.

Please see this link to the recommended fridge

ELECTRICS (OPTIONAL)

The VanLab Integrated Wiring Loom (Wiring Harness) is everything you need to automatically charge your leisure battery (charge-while-you-drive) and power your fridge, water pump, roof air fan, charge your phone and monitor your battery health.

Our integrated wiring loom is compatible with pre-cut holes in our cabinetry kits. The wiring loom is compatible with lead acid & lithium ion batteries (DC/DC charger needed). It is compatible with external power packs and solar charging (DC/DC charger needed).

The wiring loom includes

Power supply to fridge, water pump and roof air fan
2 x Double USB Chargers (USB and USB C)
Leisure Battery and Start Battery Voltage readouts
All switches, fuses, fuse board and circuit breakers for protection
Large battery isolator switch
Voltage Sensitive Relay (VSR) for automatic charge-while-you-drive
All wires are labelled and factory fitted with the required connectors.

The wiring loom does not include the leisure battery, DC/DC charger or inverter.

We cut out the middle man

VanLab saves you time, money, and effort with a simple, drag-and-drop system designed specifically for your vehicle. By combining expert knowledge, real-world experience, and thoughtful design, every component is engineered to fit perfectly straight out of the box.

Unlike traditional custom builds that require lengthy planning and modifications, VanLab removes the complexity—so you can get your van adventure-ready quickly, easily, and cost-effectively.

Read about us

Affordable

Investment by vanlab into each product, automated manufacture.

Expertly Crafted

Our experts have designed it with years of experience, specifically for USA road trips.

Efficient

Designs are pre-programmed into our machine and shipped to the door.

Premium

Cheaper manufacturing process allows us to invest more cost into quality materials.

Our Collaboration with Kia

FAQs

Why is the Sprinter 144” so popular for van conversions?

The Mercedes-Benz Sprinter 144” hits a sweet spot between size and usability. It’s compact enough to drive and park like a daily vehicle, yet large enough to fit a full camper setup with a bed, kitchen, and storage. Combined with its reliability, strong resale value, and huge aftermarket support, it’s become the go-to “do-it-all” van—and a favorite in the vanlife community.

What makes this layout different from larger vans like the Sprinter 170”?

The Sprinter 144” focuses on efficiency and maneuverability, packing everything you need into a shorter footprint. Compared to the 170”, you’ll have slightly less interior space and storage, but gain a van that’s easier to park, more user-friendly, and better suited for everyday driving. It’s ideal if you want a complete camper without stepping up to a longer, less nimble vehicle.

What does the bed and garage setup look like in this kit?

The kit features a raised east-west bed (67.25" x 61") with a large garage underneath (approx. 100ft³). The garage includes 9 cubbies and a central space designed for bulky gear like bikes. If you need more sleeping length, the bed is also compatible with flares/pop-outs to extend it up to 79".
