Introducing our kit for the Chevy Express / GMC Savana vans!

Renowned as the workhorses of the US, the Chevy Express and GMC Savana 155" are popular choices for camper van conversions, thanks to their impressive cargo area, payload capacity, powerful engine options, and affordability.

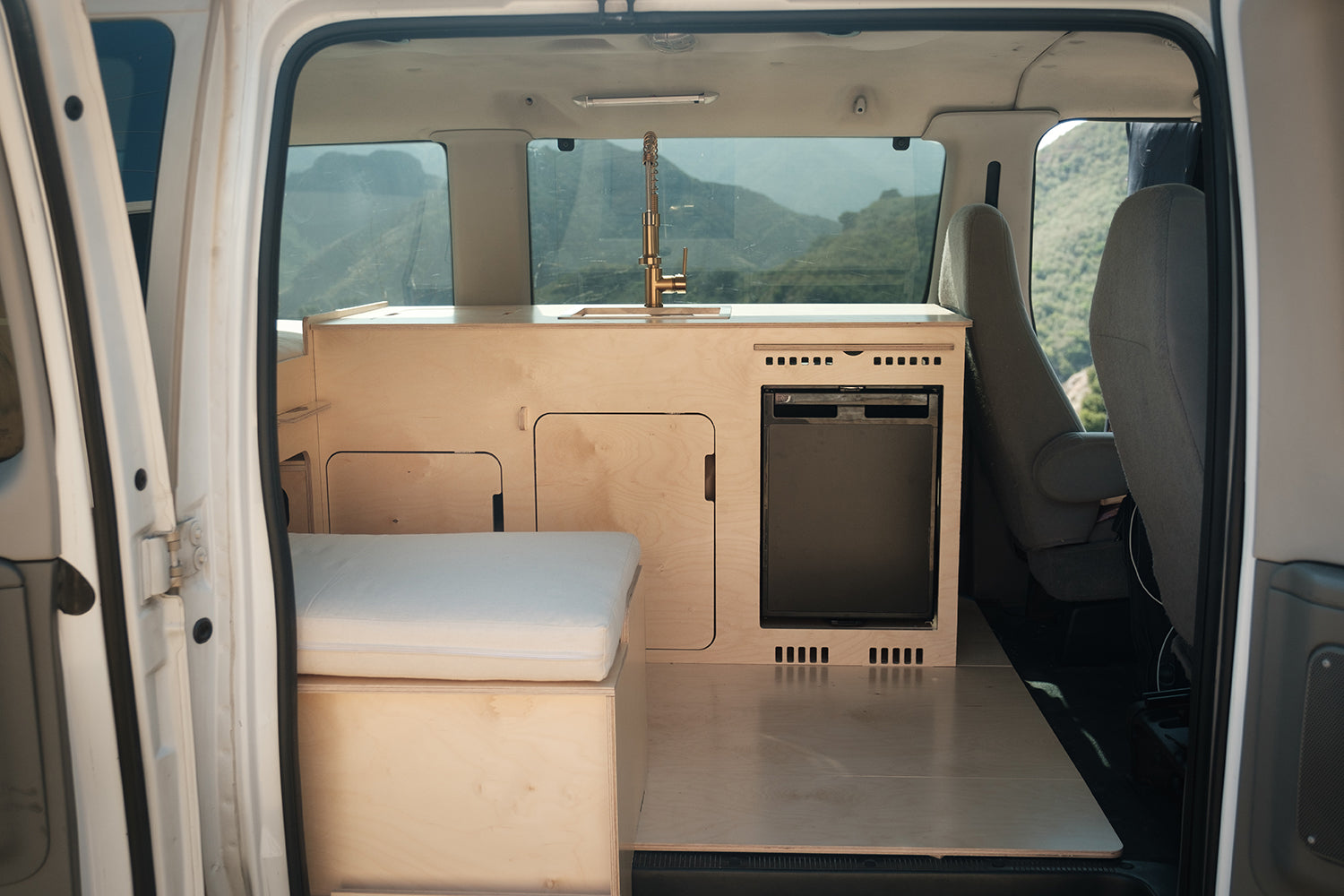

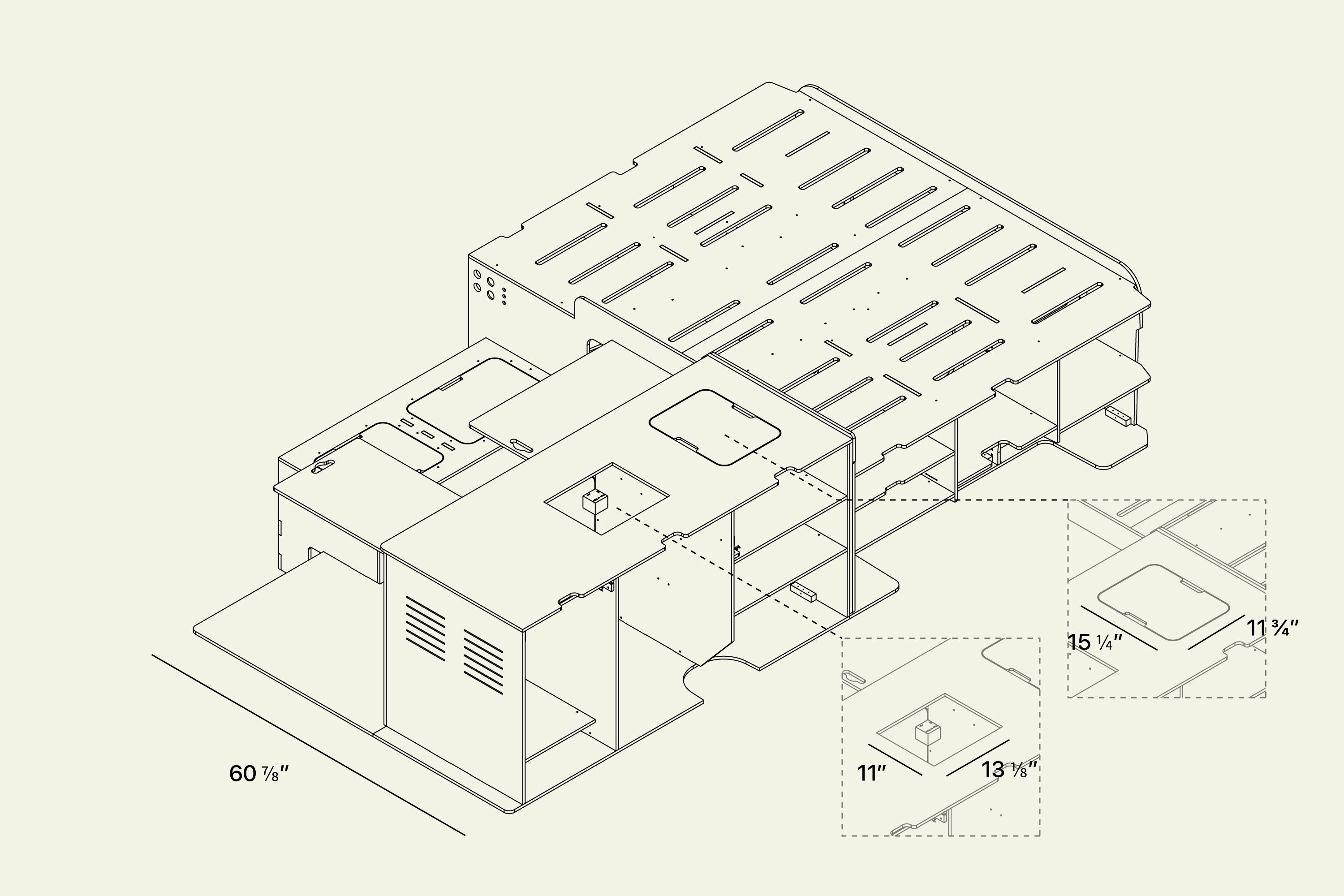

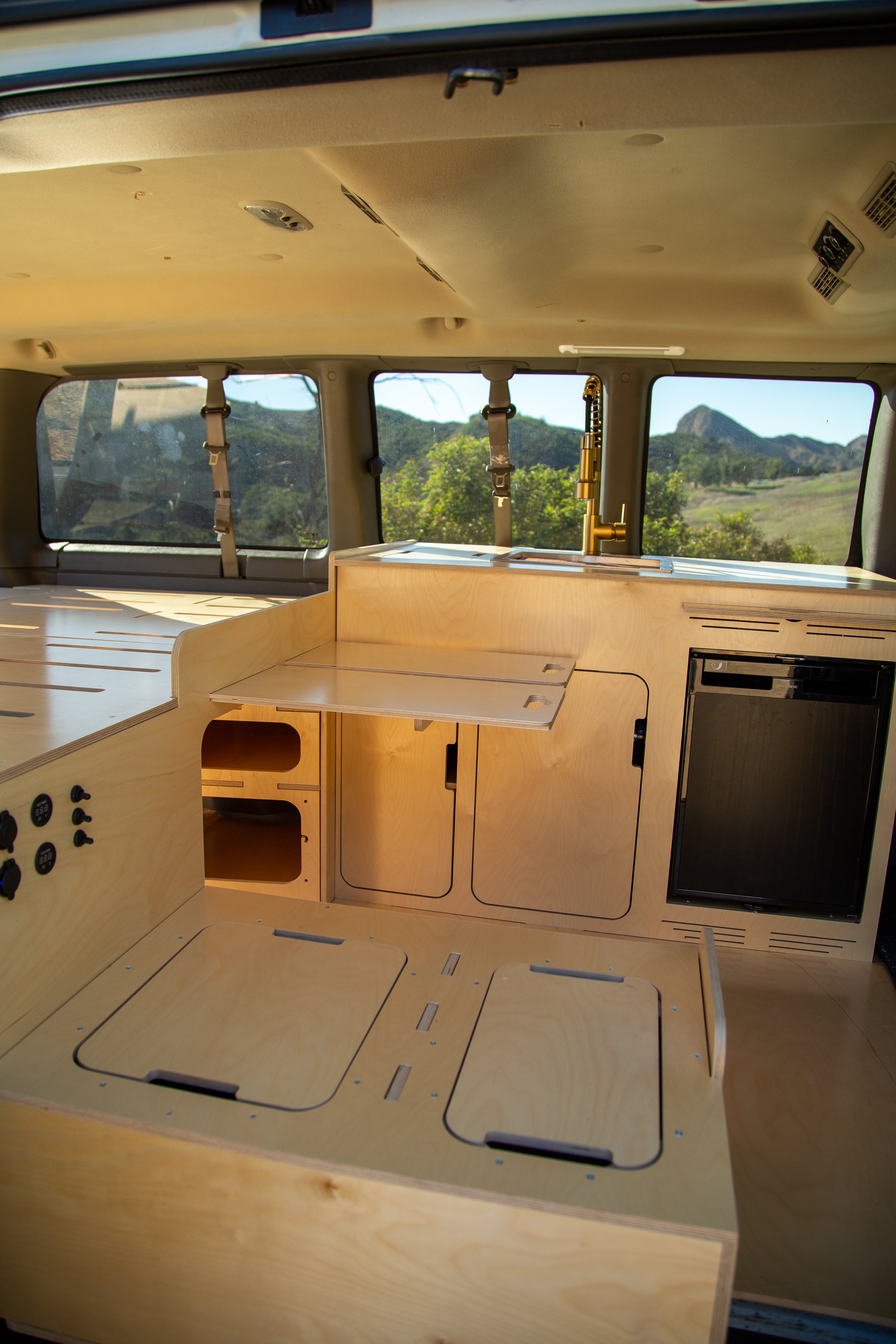

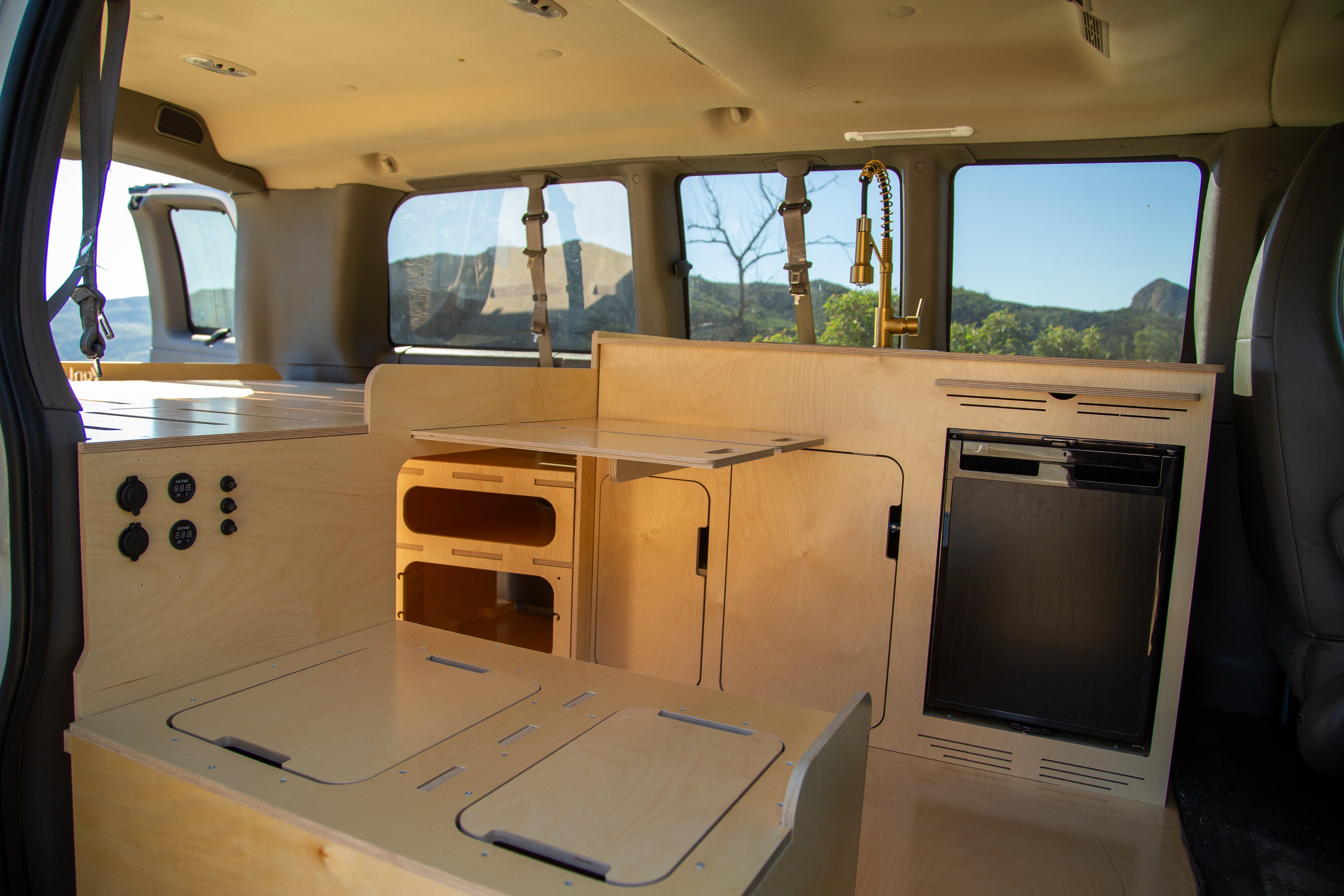

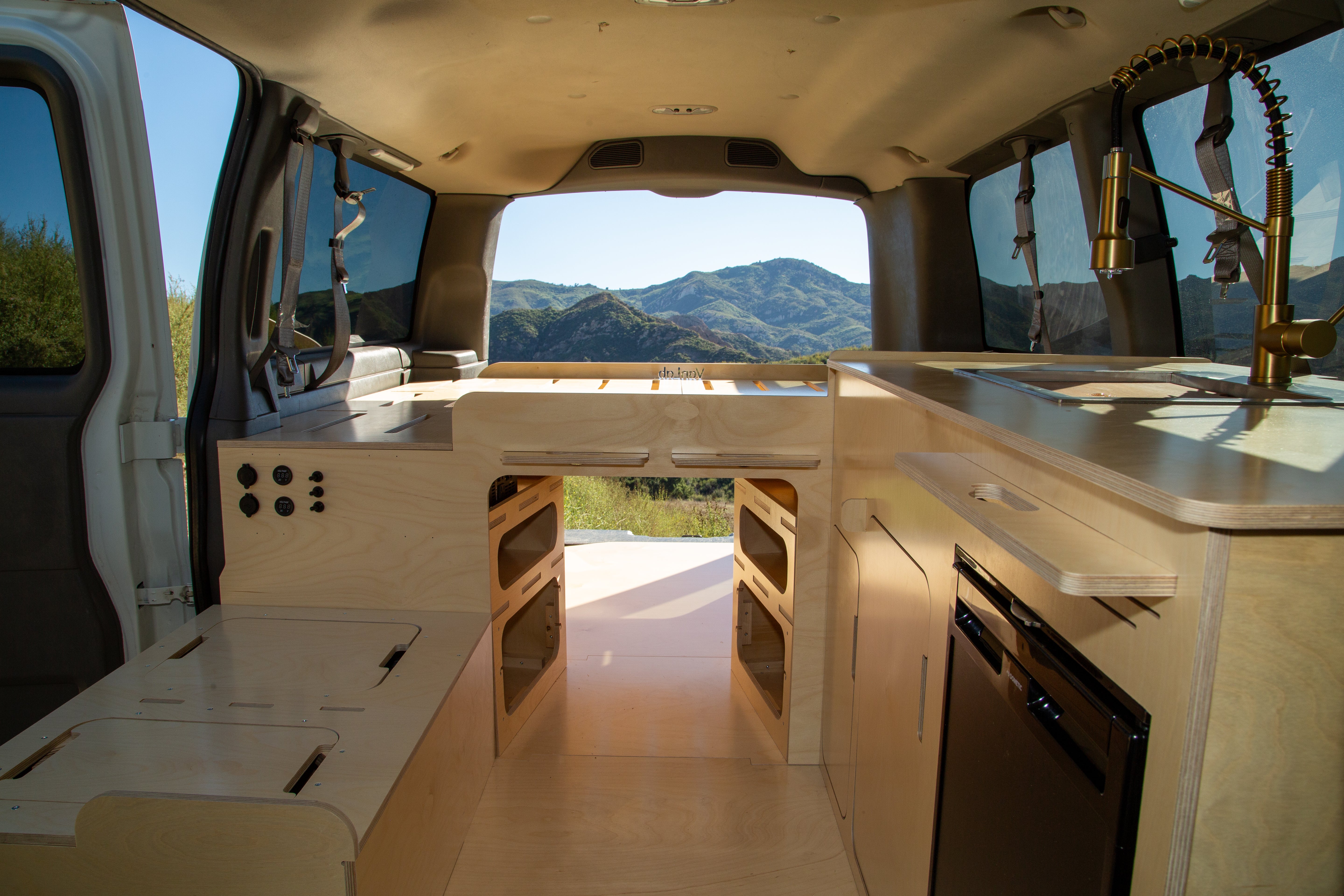

The kitchen area of our kit features a fridge compartment behind the driver's seat, with two additional lockers for water storage/sink and trash/kitchen storage. Additionally, we've integrated a slide-out table above the fridge for extra worktop space, accessible from both the front seats and the seating area.

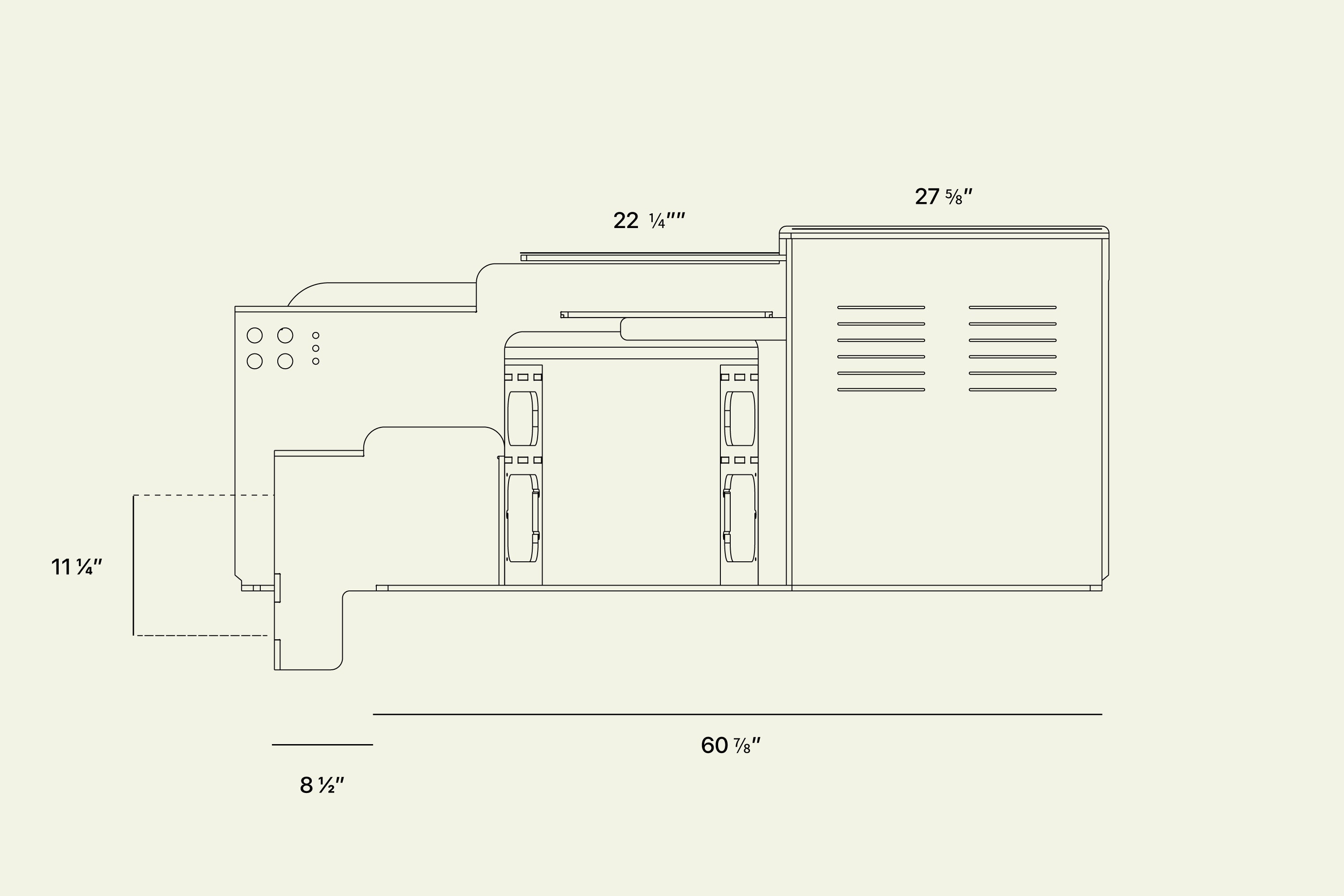

Opposite the kitchen, we feature a 2-person bench seat that doubles as additional storage and an integrated slide-out table; the living space offers versatility and functionality.

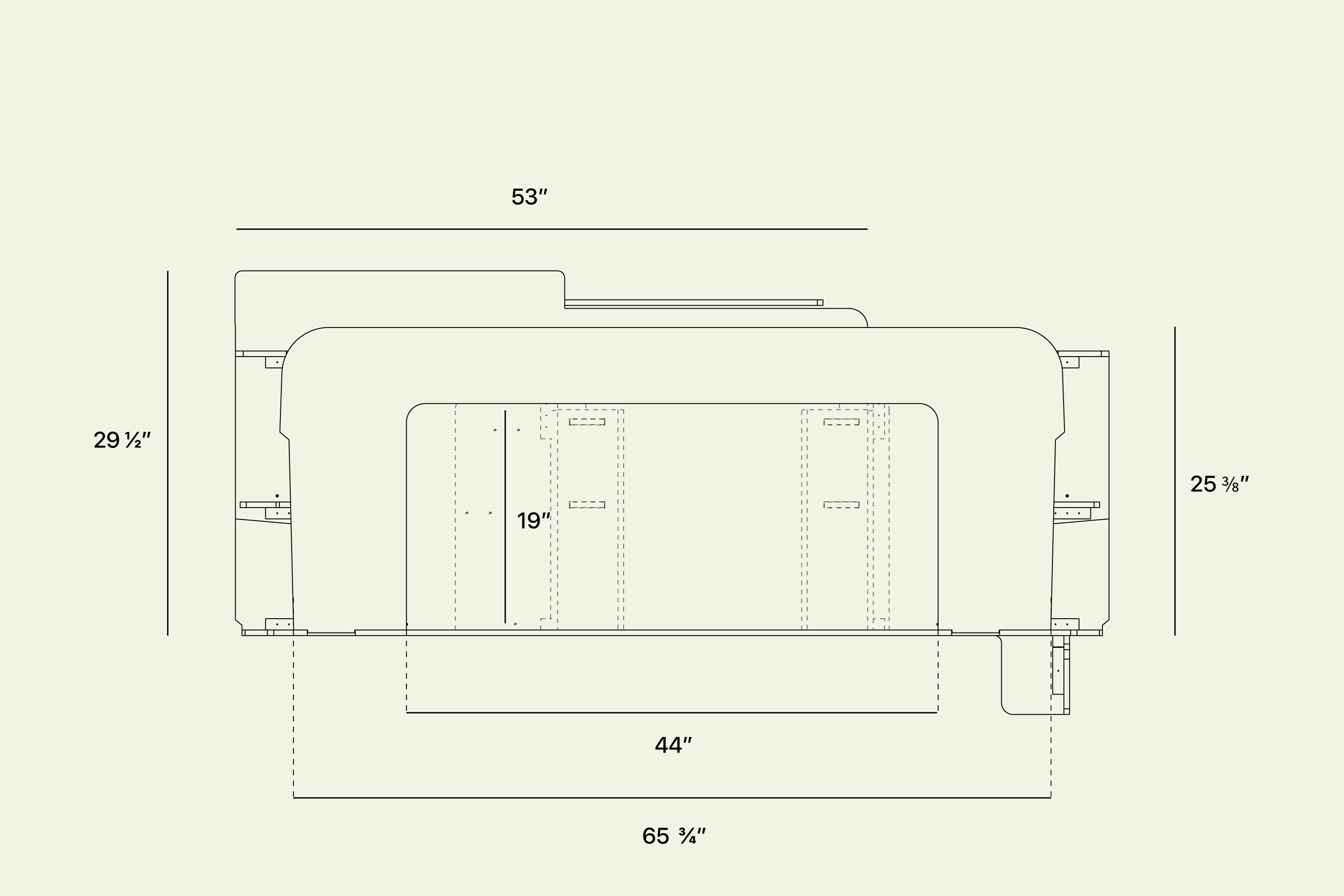

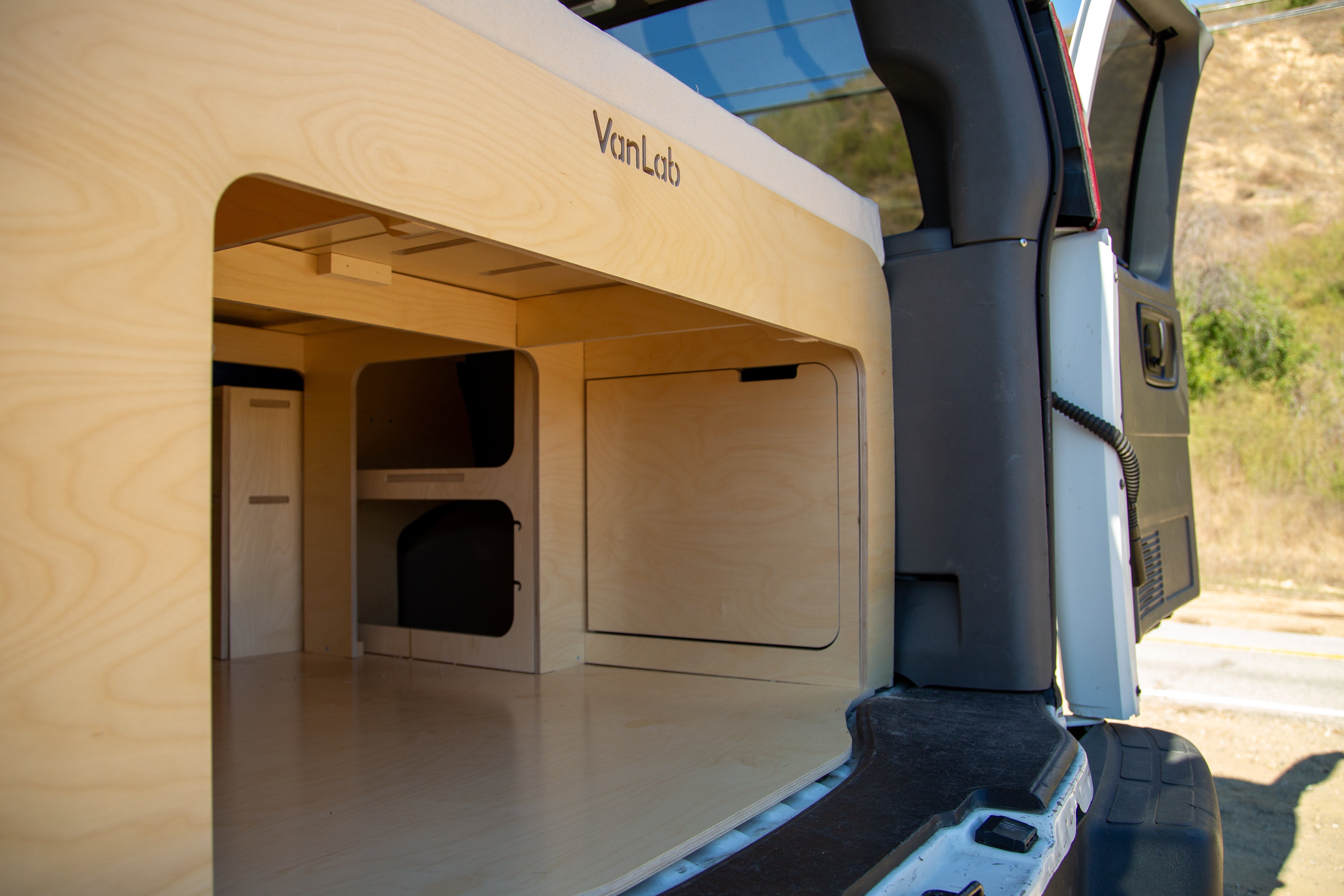

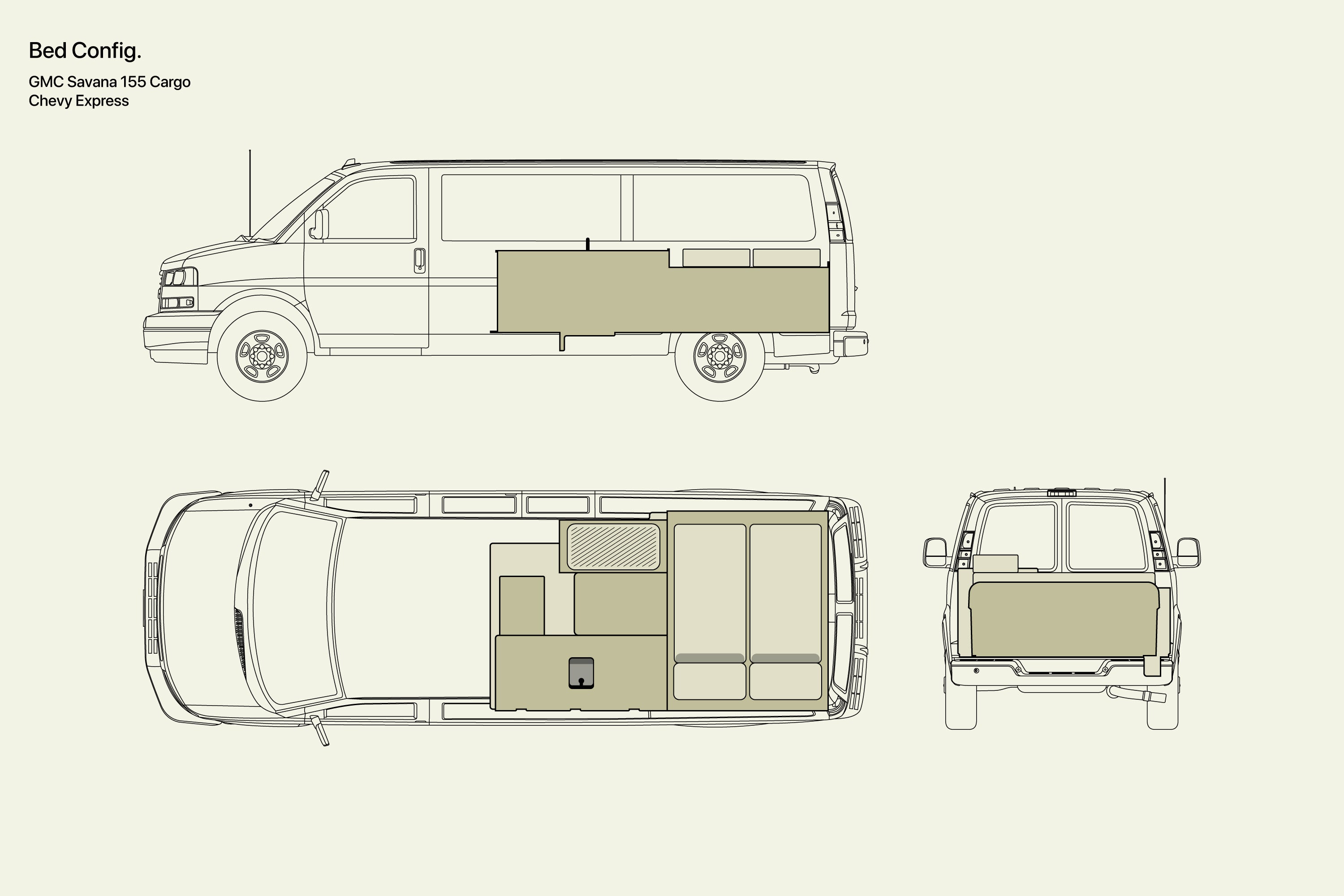

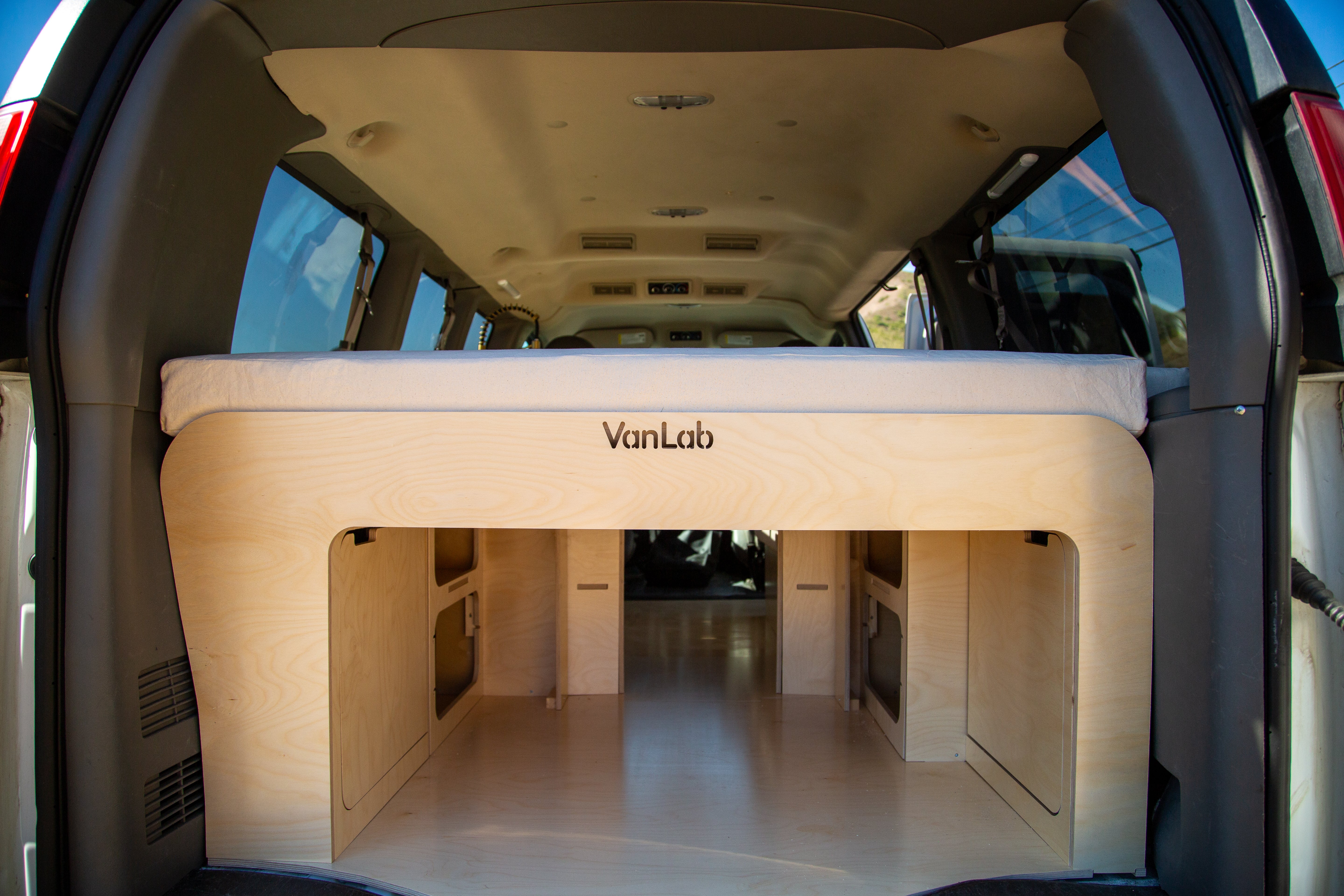

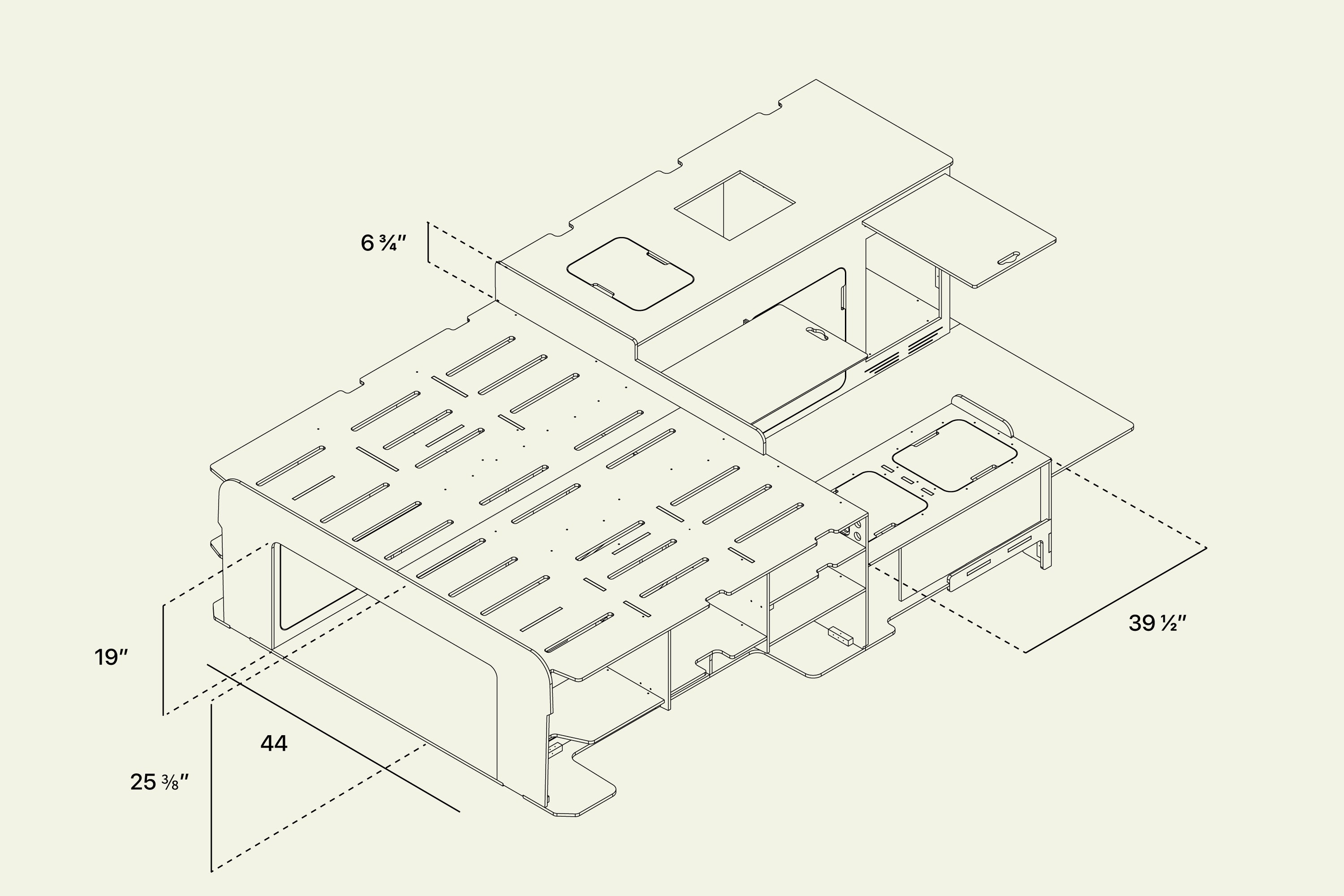

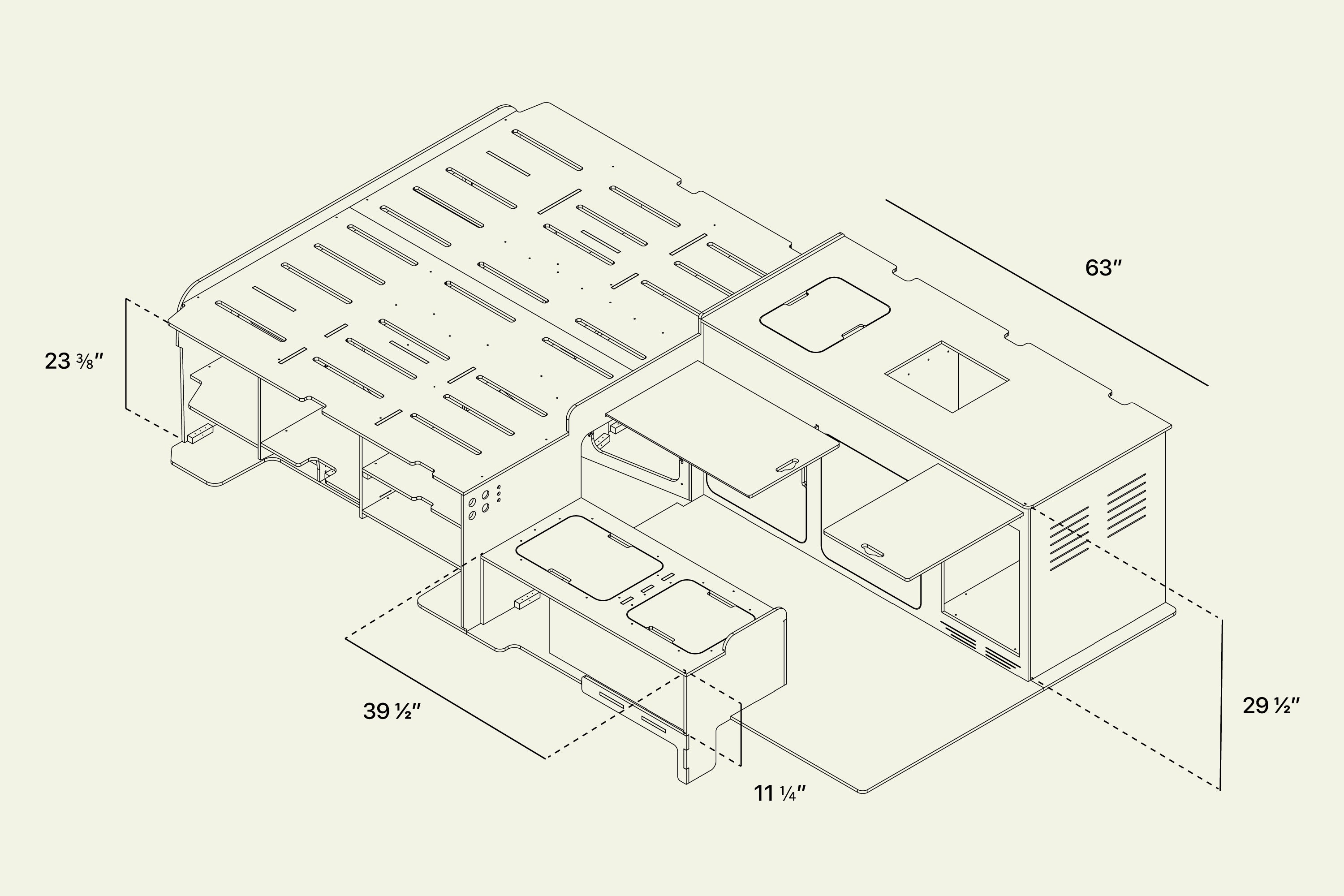

The raised large East/West bed (73" Long x 58" Wide) is situated atop a spacious 50ft³ garage section. The garage is divided into storage areas at the sides of the van and a large open section for maximum storage options. A tunnel through to the front living section allows for storage of longer items such as surfboards and camping awnings, with accessibility from both sides.

Our kits are designed for quick assembly and engineered for DIY installation, so you can get going in no time! What’s our secret? We use 3D vehicle laser scans for every vehicle we work on, and the best 3D parametric design software on the market. Our lead engineers learned these skills while working at the peak of the automotive and aeronautical industries; one from McLaren designing supercars and one from Sikorsky designing helicopters.

We follow Poka-Yoke principles (mistake-proof design), inspired by the precision of automotive production lines. Just like a square peg in a square hole, every part is clearly labeled and engineered to fit perfectly in its designated spot. Whether it’s a unique component that fits only one way or a universal part that’s fully interchangeable, every VanLab kit is built for simplicity and reliability.

Download your installation manual here.

Download now

Watch the install videos here - Note, this is a universal install video. Detailed instructions are found in the manual.

Watch Now

Specifications

SPACES

BED

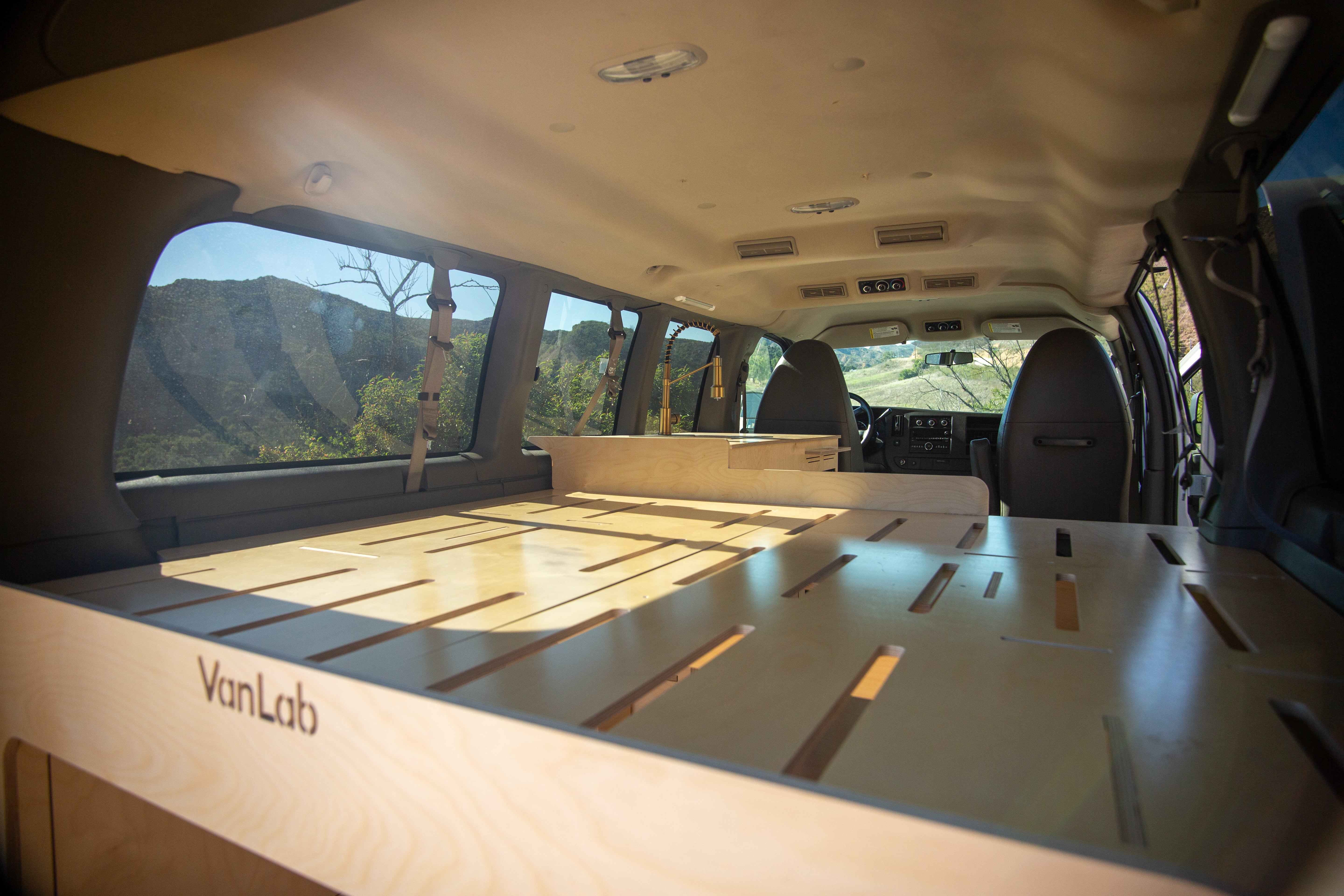

  • Raised bed platform designed for 2 people to sleep East West across the van.

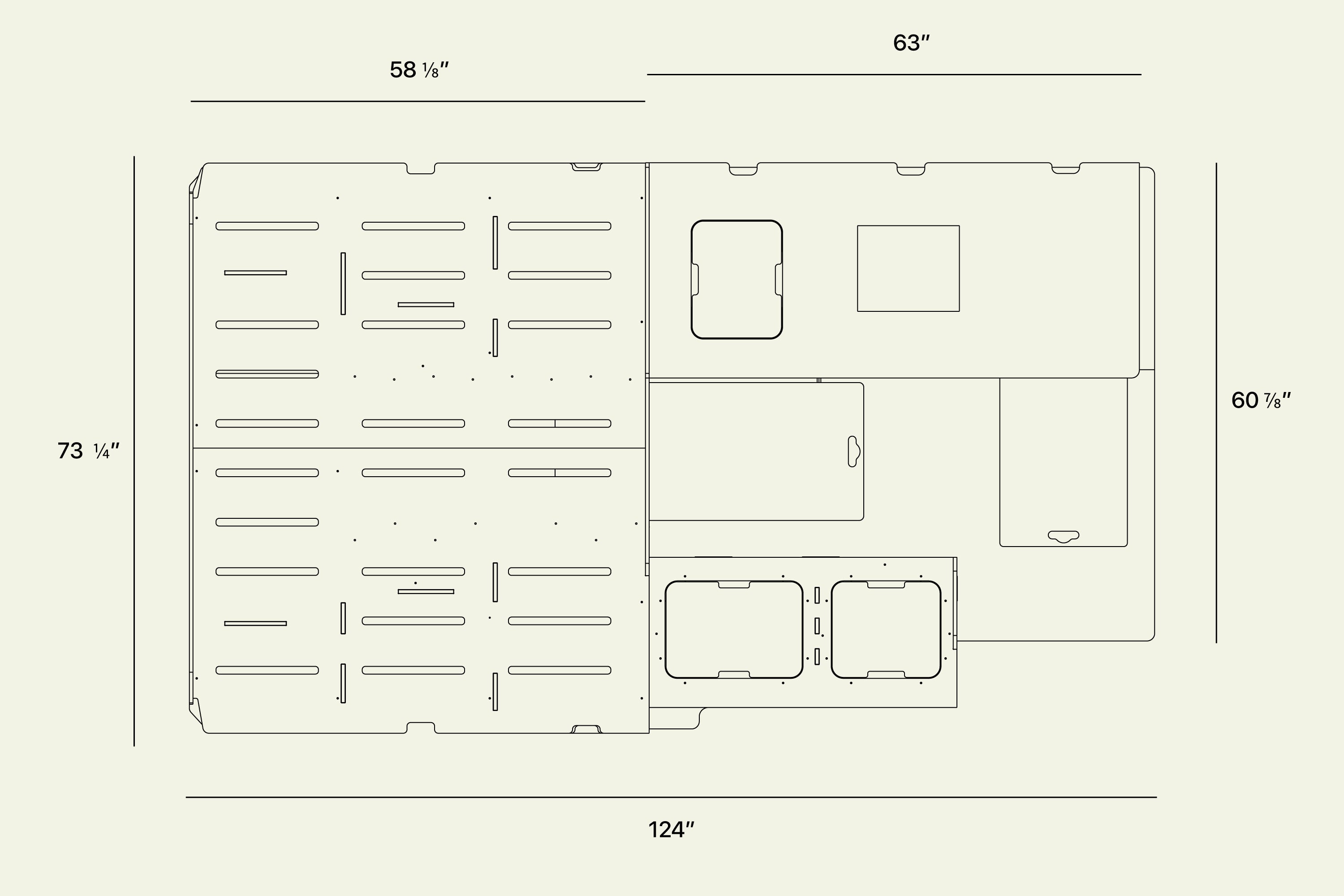

  • Bed frame: 73" long x 58" Wide. The bed runs from window to window, so the total length sits around 75”. It is compatible with flares/pop-outs for an additional 3” on both sides if required.
  • Bed Platform height: 23.5"(bedding and cushions not included)

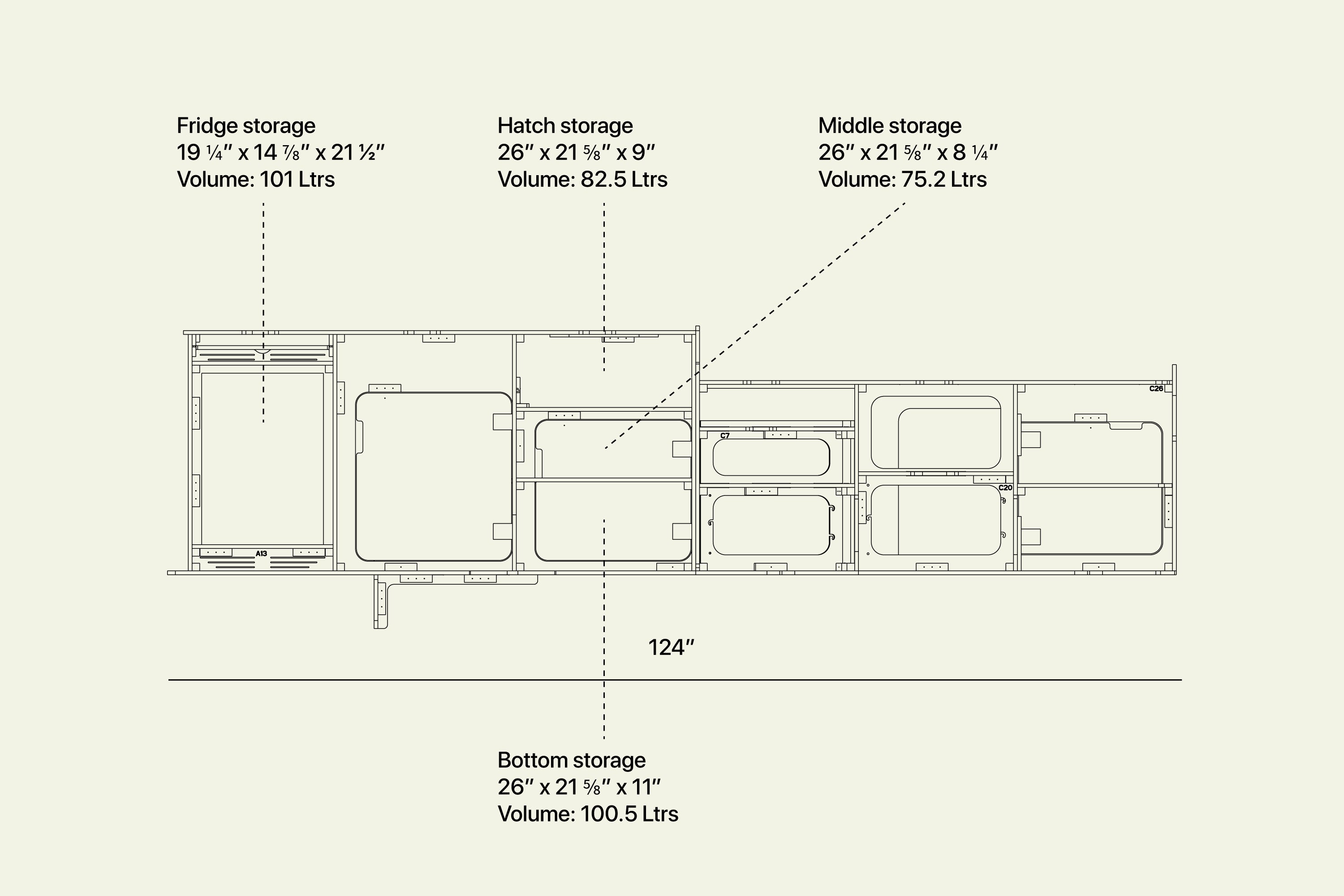

STORAGE

  • Kitchen Storage for 10 gallons of water, 49L fridge, and additional cupboard for kitchen items (4.75ft3 kitchen storage)
  • Benchtop space for double burner, sink and faucet
  • 2 slide out table for adjustable and comfortable kitchen bench/work bench/ table space.
  • Bench seat designed for 2 people, with internal storage for battery and electrical component storage (7.05ft3 bench storage)

GARAGE

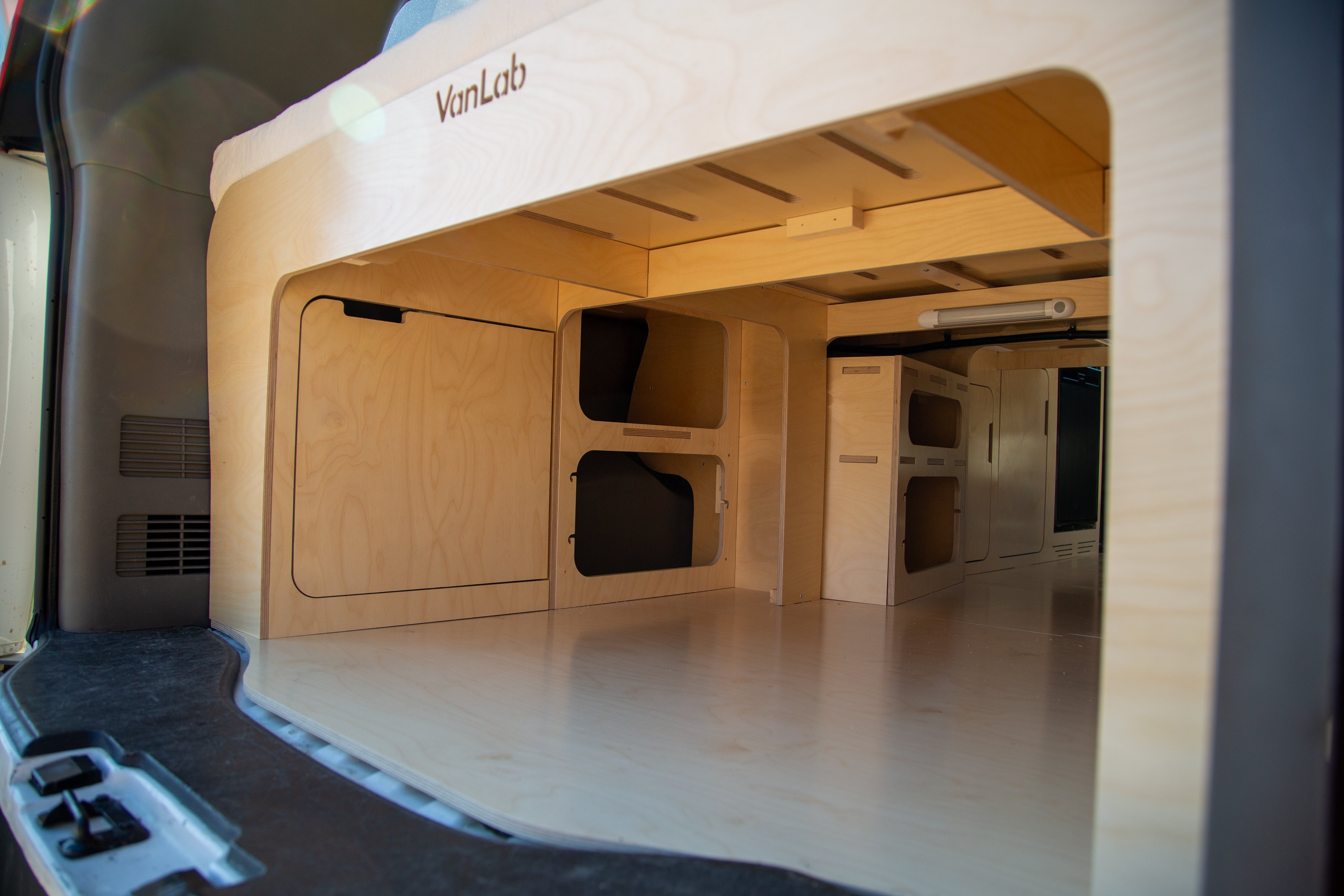

  • Garage storage with 14 individual cubbies, and with a large main central area.
  • Access through the garage to the front of the van.
  • Total garage storage: approx. 50ft3

Appliances

WATER STORAGE

Water Storage Size: 21.5” wide, 25” deep, 29” tall (Approx. 9 ft3). Water cabinet designed for 12 gallons of water storage.

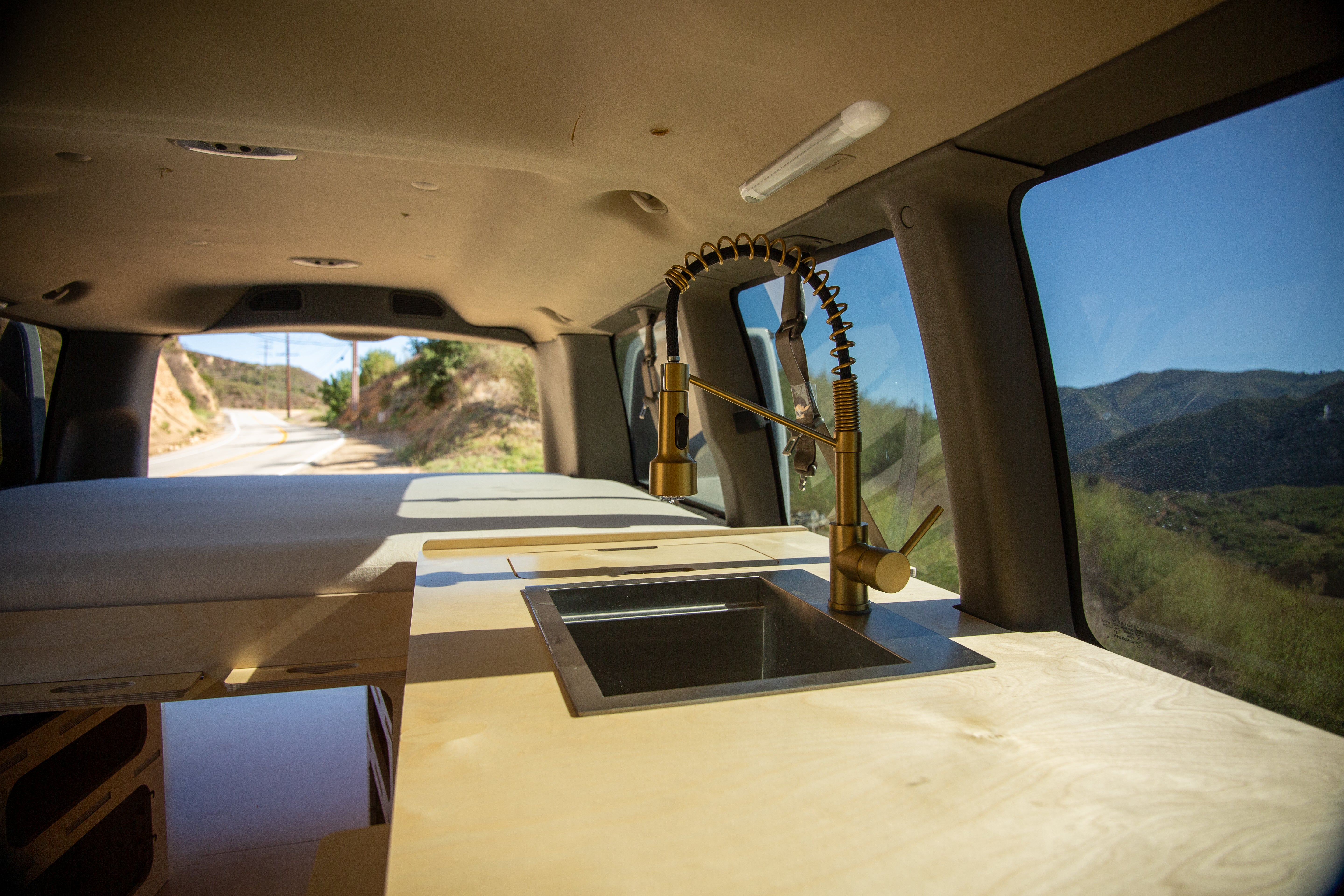

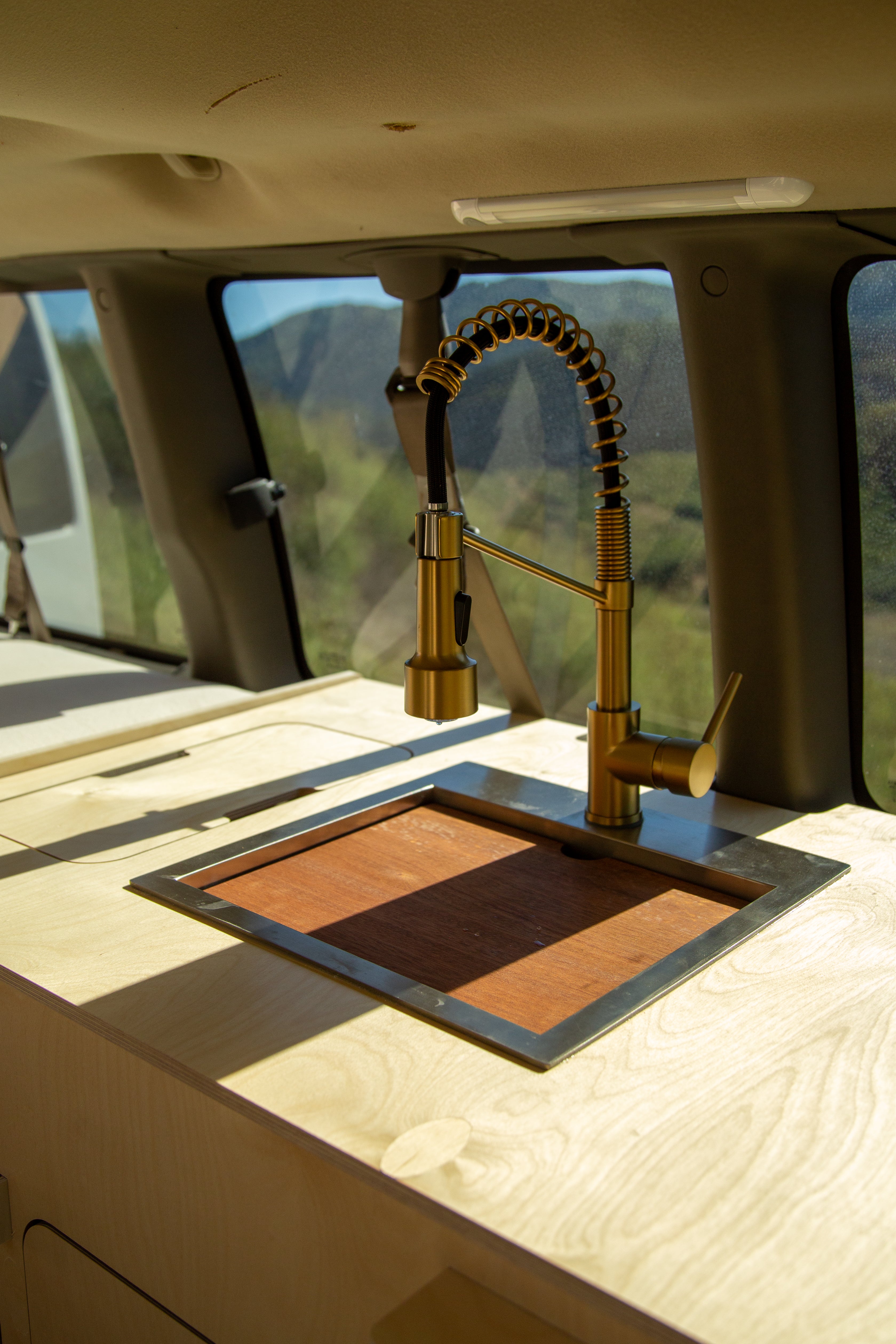

SINK & FAUCET

Pre-Cut Sink Opening: 12” wide, 14” deep
Recommended Sink: TORVA 13” x 15” RV Sink with foldable Faucet
Recommended Faucet: Included with Sink

Please see this link to the recommended sink

FRIDGE

Pre-cut Fridge Opening: 15.2” wide, 21” tall
Fridge Depth: 17.6”
Recommended fridge: Isotherm 49 Elegance Black, 3 sided flange; 1.75cu.ft. 12V Fridge/Freezer.

Please see this link to the recommended fridge

ELECTRICS (OPTIONAL)

The VanLab Integrated Wiring Loom (Wiring Harness) is everything you need to automatically charge your leisure battery (charge-while-you-drive) and power your fridge, water pump, roof air fan, charge your phone and monitor your battery health.

Our integrated wiring loom is compatible with pre-cut holes in our cabinetry kits. The wiring loom is compatible with lead acid & lithium ion batteries (DC/DC charger needed). It is compatible with external power packs and solar charging (DC/DC charger needed).

The wiring loom includes

  • Power supply to fridge, water pump and roof air fan
  • 2 x Double USB Chargers (USB and USB C)

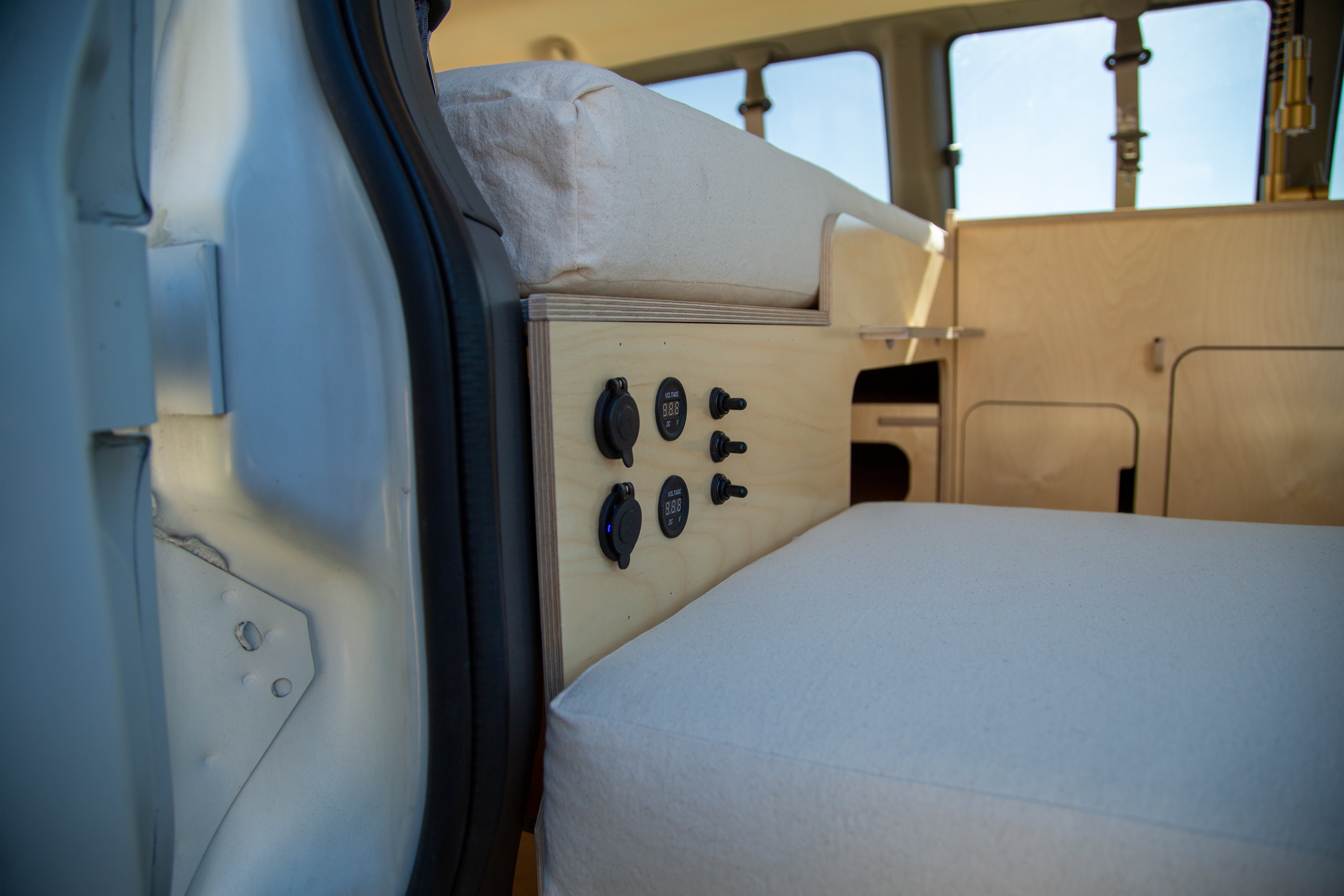

  • Leisure Battery and Start Battery Voltage readouts
  • All switches, fuses, fuse board and circuit breakers for protection
  • Large battery isolator switch
  • Voltage Sensitive Relay (VSR) for automatic charge-while-you-drive
  • All wires are labelled and factory fitted with the required connectors.

The wiring loom does not include the leisure battery, DC/DC charger or inverter.
