Nissan NV 200

The NISSAN NV200 is a compact powerhouse of a campervan conversion. At just 29 sq ft, this tiny van packs a punch, offering a living room, kitchen, and bedroom all in one!

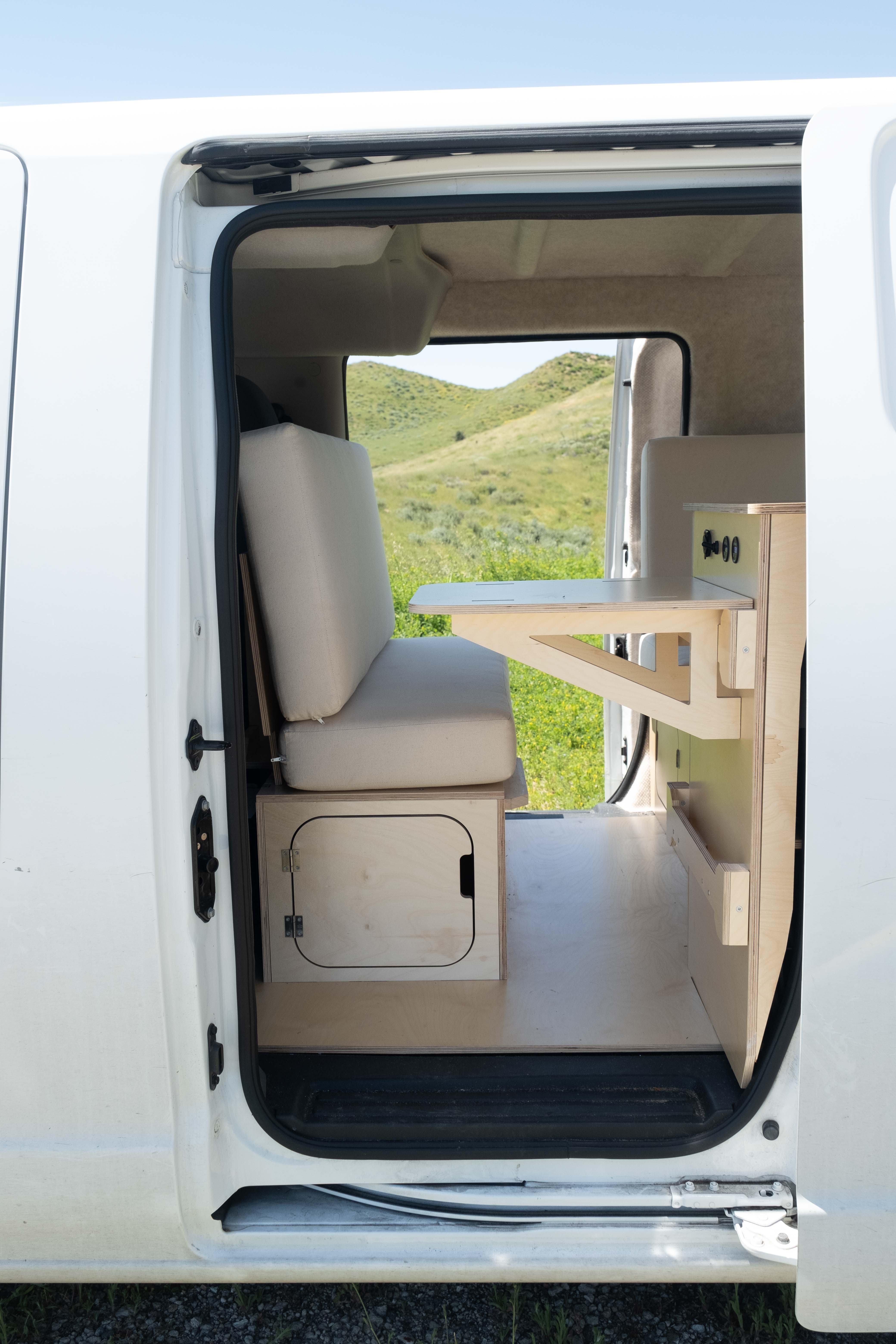

We’ve crafted a unique, moveable configuration for the NV200 based around two French Cleat style tables. These tables allow for quick and easy transformation of the space into a bed, kitchen, lounge, or even a comfortable office on wheels—no tools or fittings required! This versatile living/sleeping area converts to a 78” Long x 39” Wide bed, sleeping from North/South.

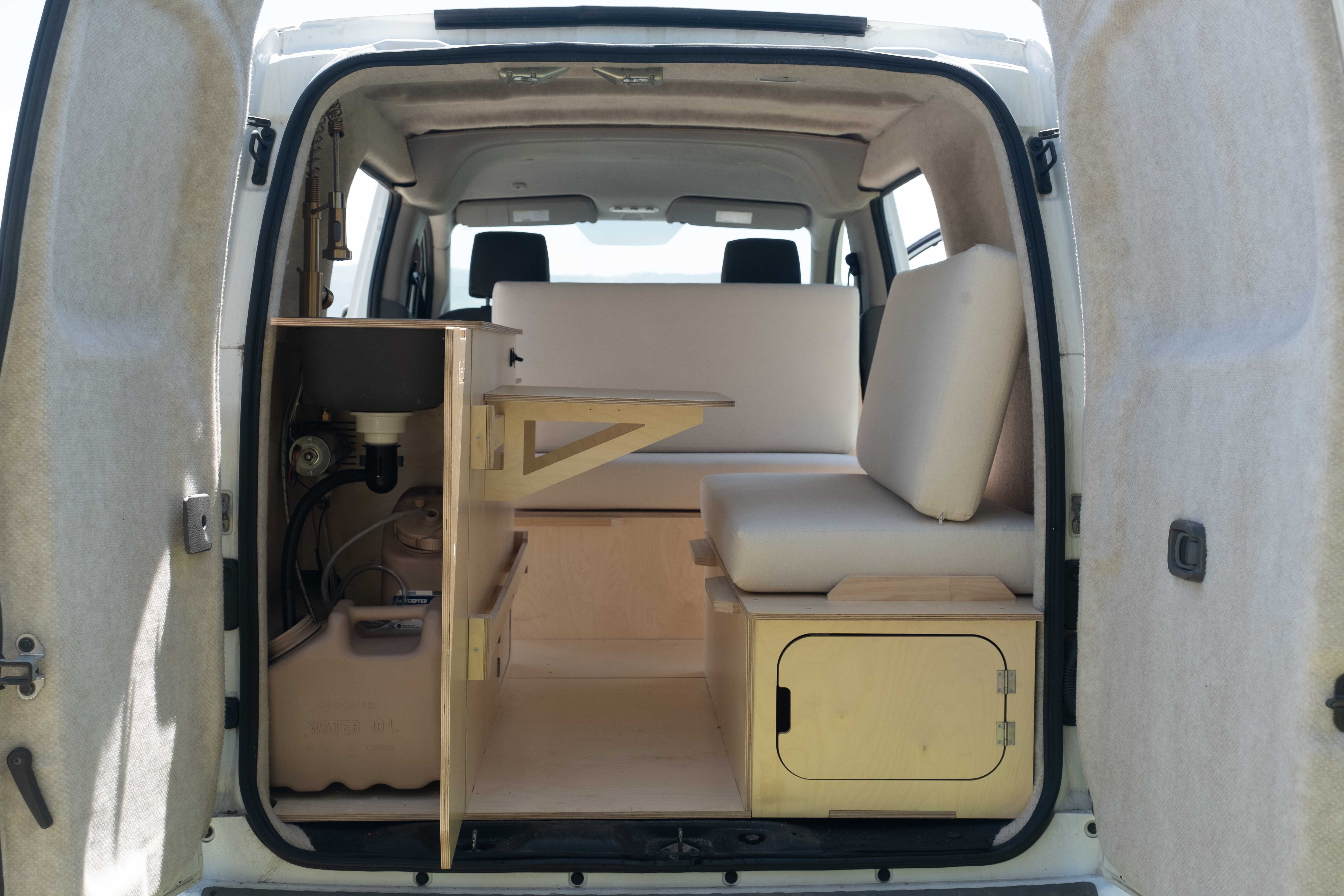

The NV200 is designed for both inside and outside use, giving you the flexibility to enjoy your surroundings regardless of the weather. Nice weather? Slide the tables back for a rear kitchen. Less nice outside? Slide both tables to the top rail and sit inside, with a full width bench at your hands. From outdoor cooking to cozy indoor lounging, the possibilities are endless!

Our kits are designed for quick assembly and engineered for DIY installation, so you can get going in no time! What’s our secret? We use 3D vehicle laser scans for every vehicle we work on, and the best 3D parametric design software on the market. Our lead engineers learned these skills while working at the peak of the automotive and aeronautical industries; one from McLaren designing supercars and one from Sikorsky designing helicopters.

We follow Poka-Yoke principles (mistake-proof design), inspired by the precision of automotive production lines. Just like a square peg in a square hole, every part is clearly labeled and engineered to fit perfectly in its designated spot. Whether it’s a unique component that fits only one way or a universal part that’s fully interchangeable, every VanLab kit is built for simplicity and reliability.

DOWNLOADS
GUIDES
Specifications
FAQ’s
REVIEWS

Download your installation manual here.

Download now

Watch the install videos here - Note, this is a universal install video. Detailed instructions are found in the manual.

Watch Now

Specifications

SPACES

BED

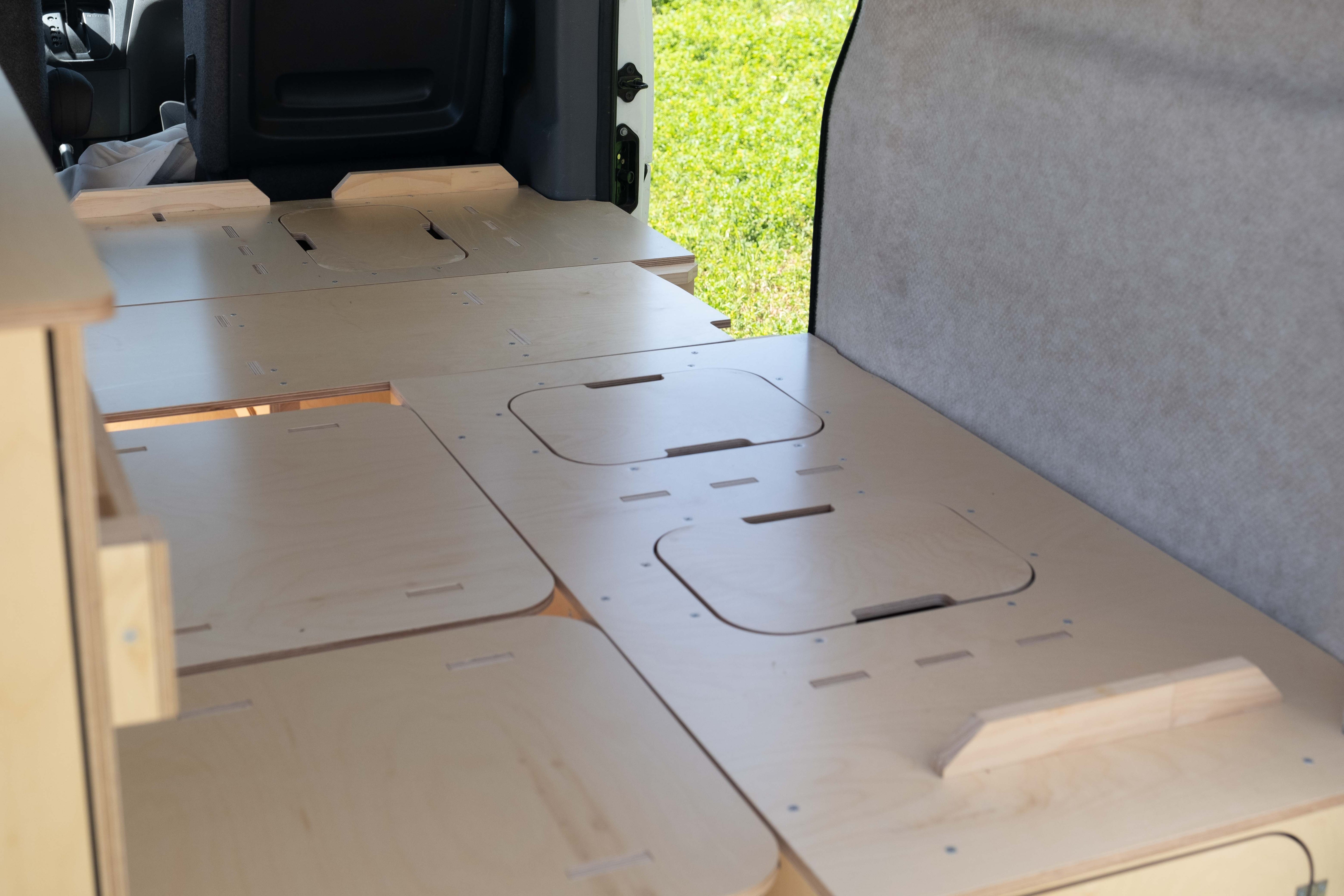

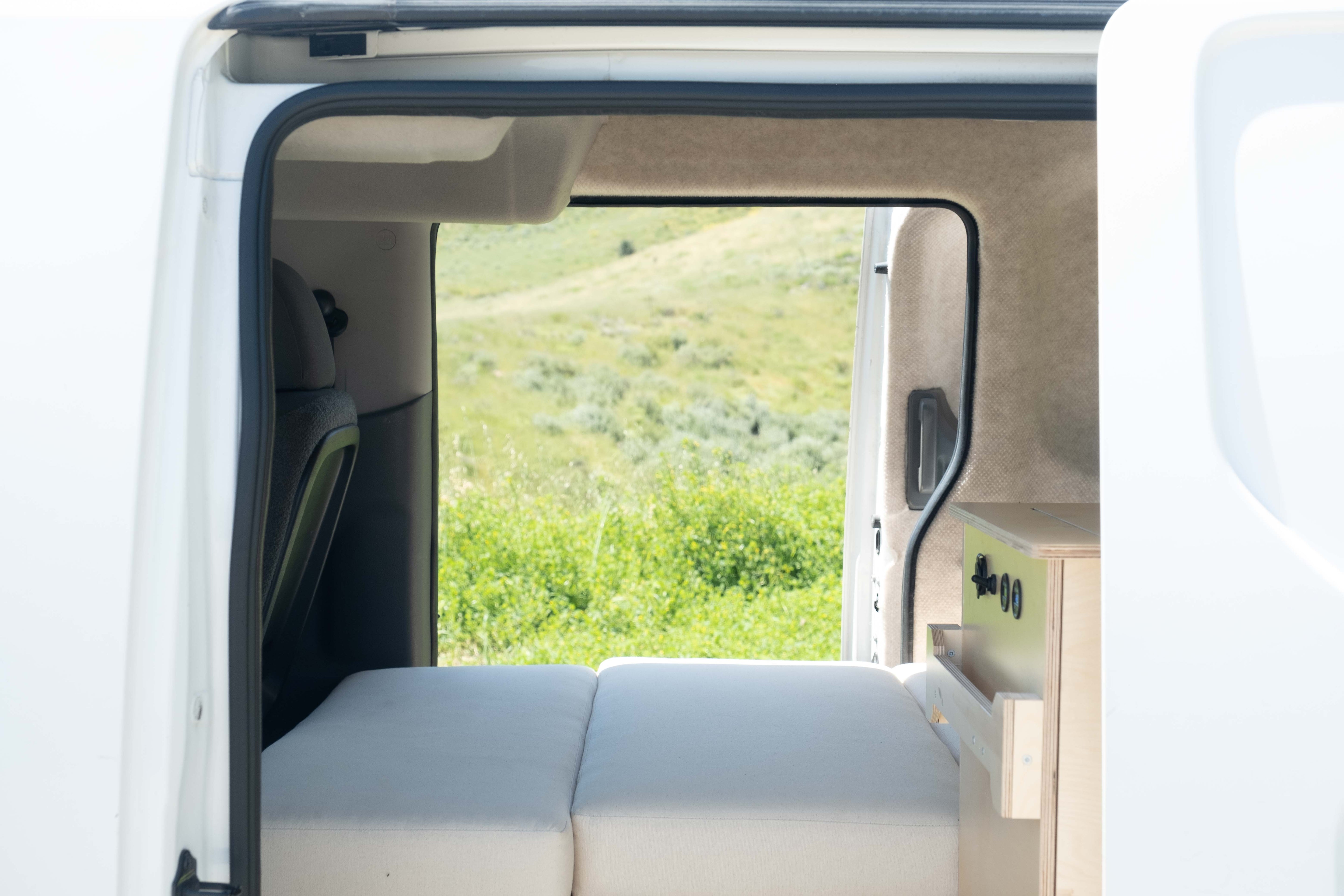

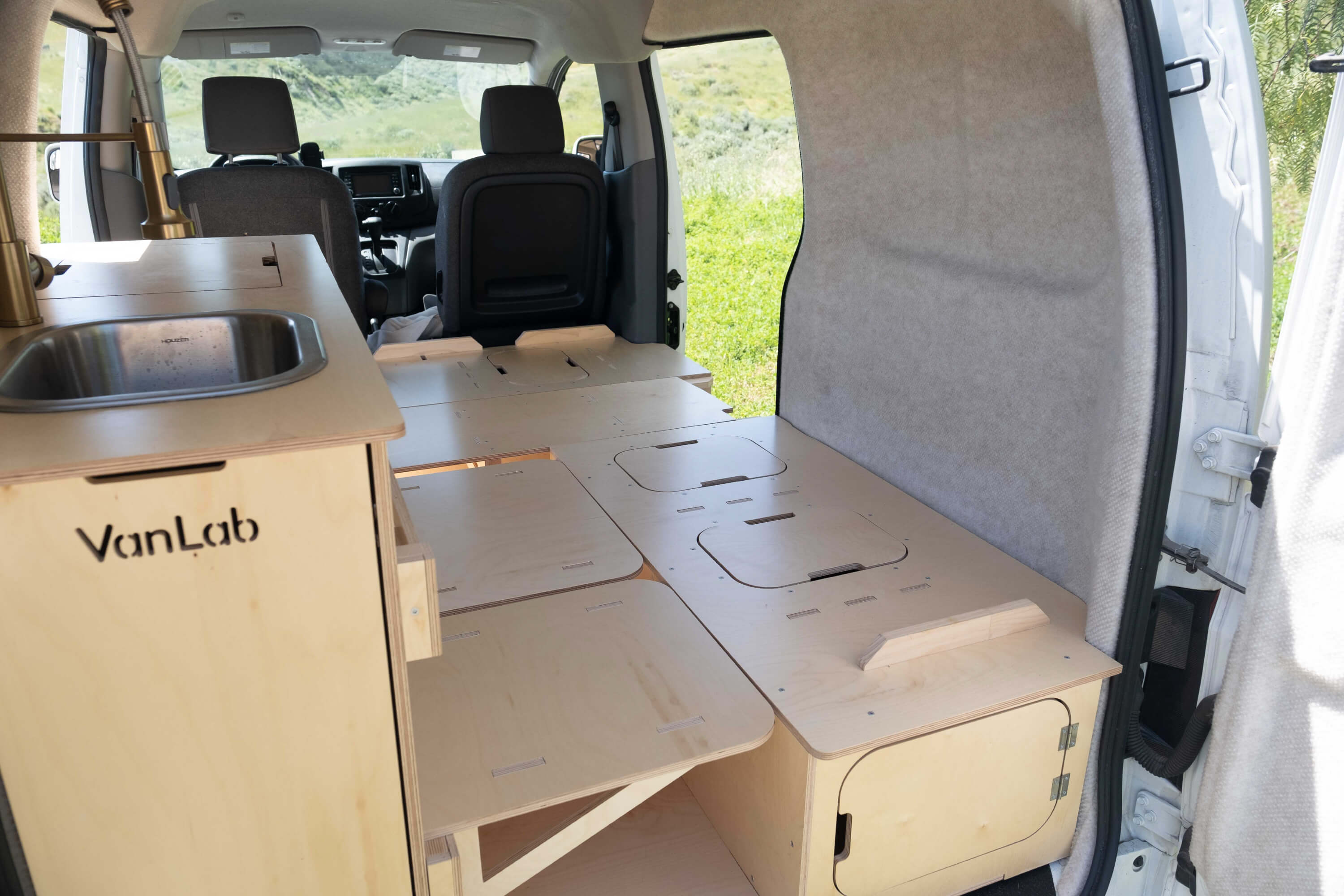

Bed frame: North/South Sleeping, 78" long x 39" Wide. The bed runs the full length of the van (rear doors to front seats)
(Bedding / Cushions not included)

STORAGE

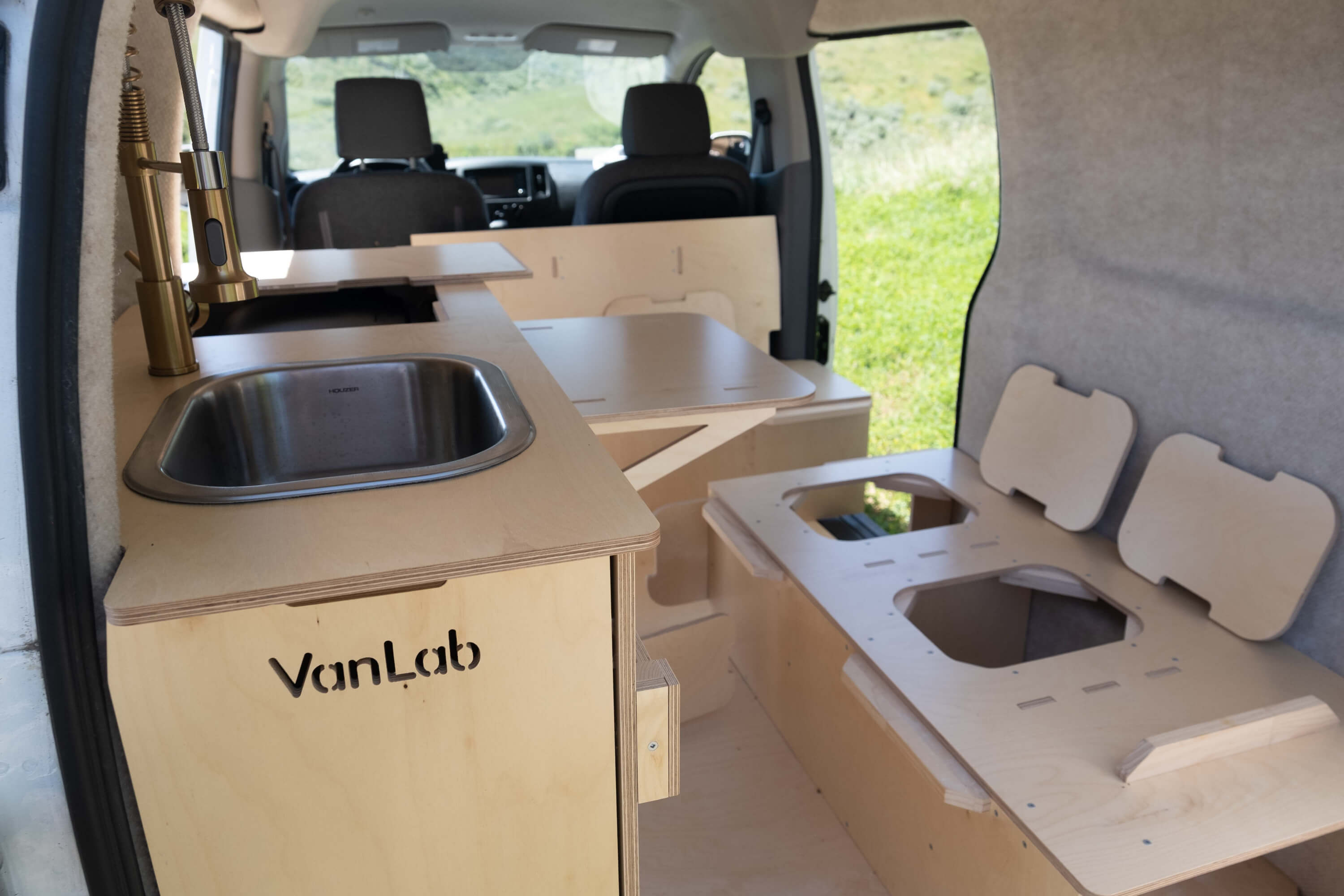

Kitchen Storage for fresh and grey water, 18L fridge, and additional cupboard for kitchen items (1.8ft3 kitchen storage)
Benchtop space for sink, faucet and top opening fridge

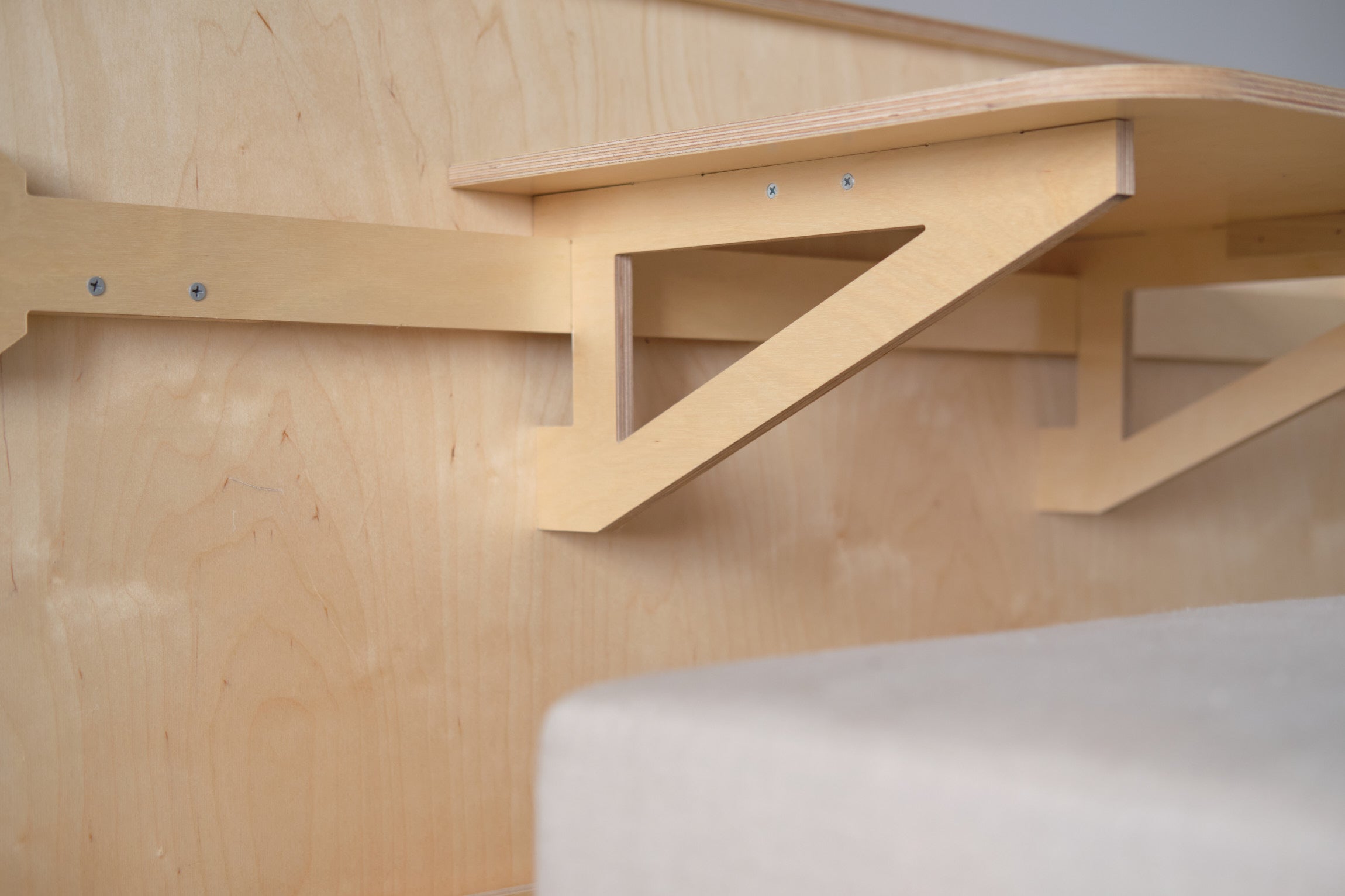

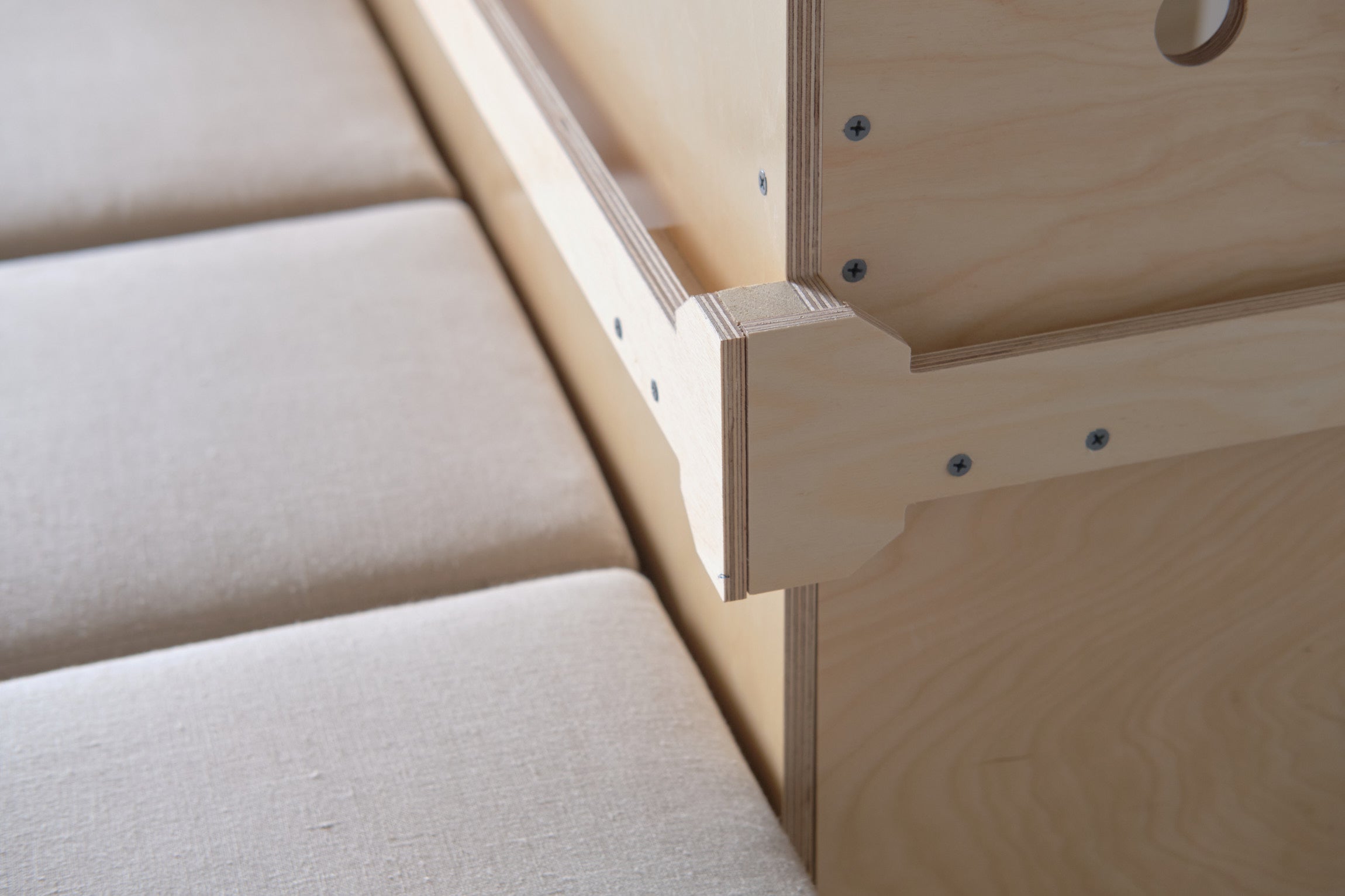

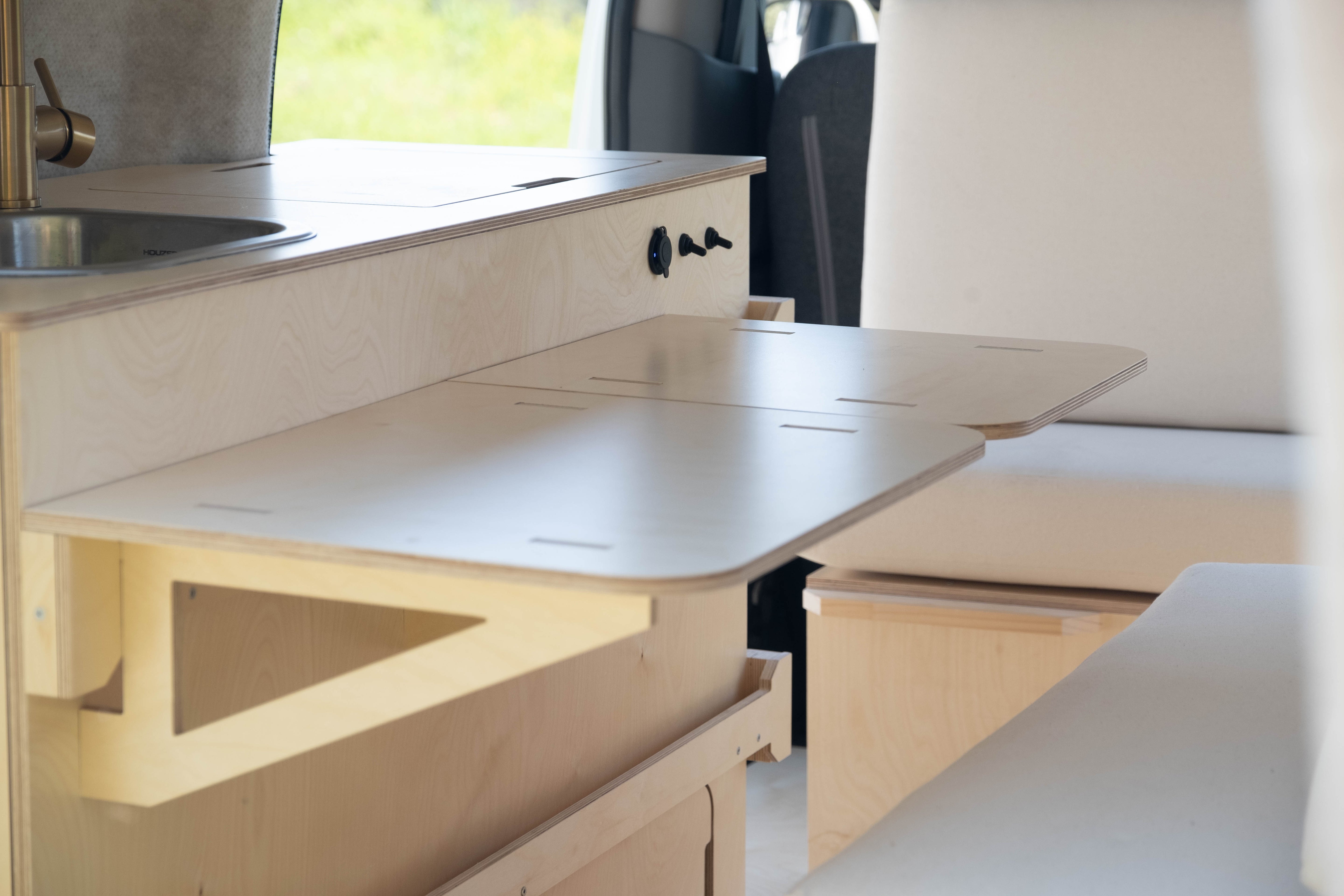

2 French Cleat style tables, adjustable height, lift-on lift-off to create table surface, prep surface, lounge mode, bed mode and additional kitchen work space.

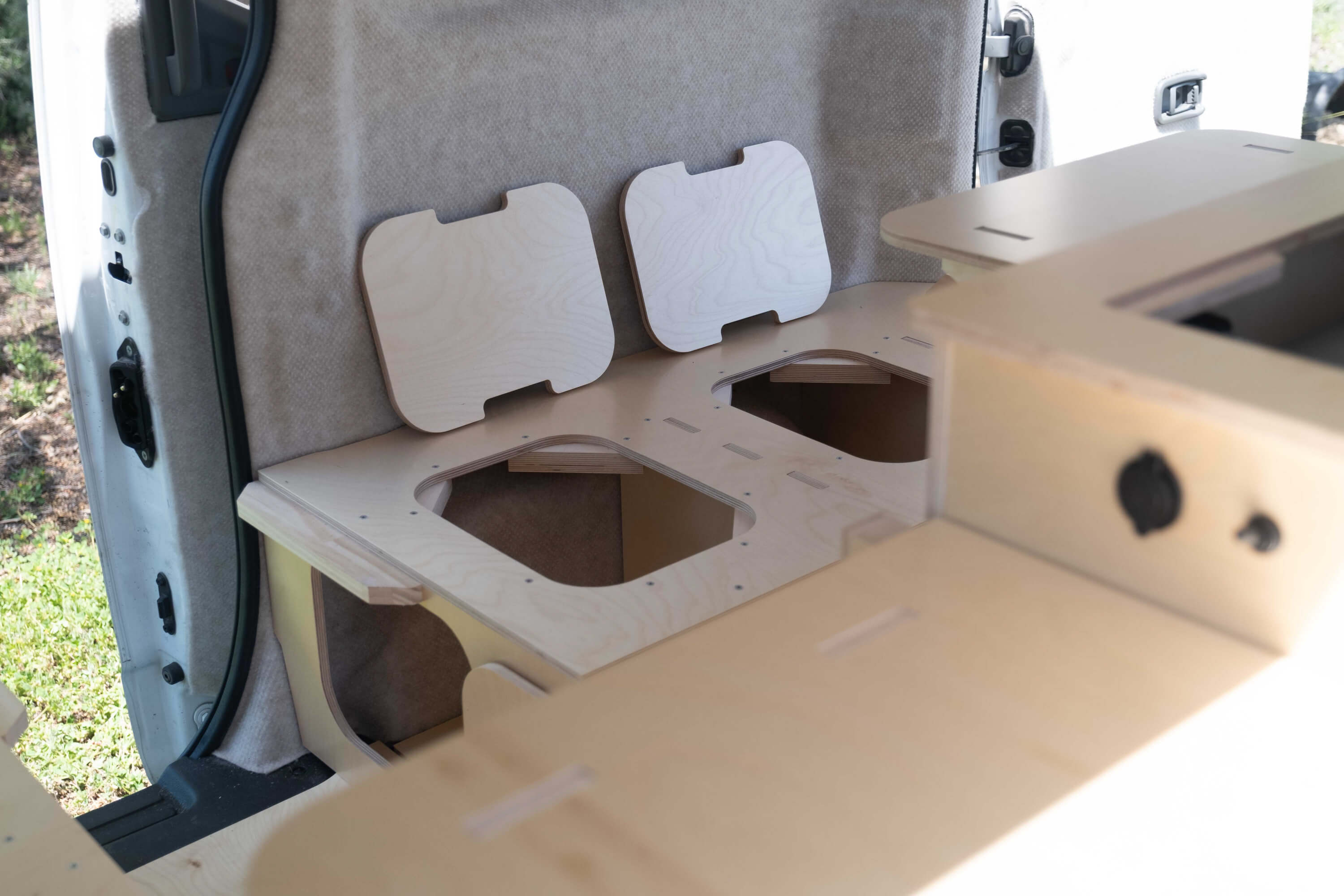

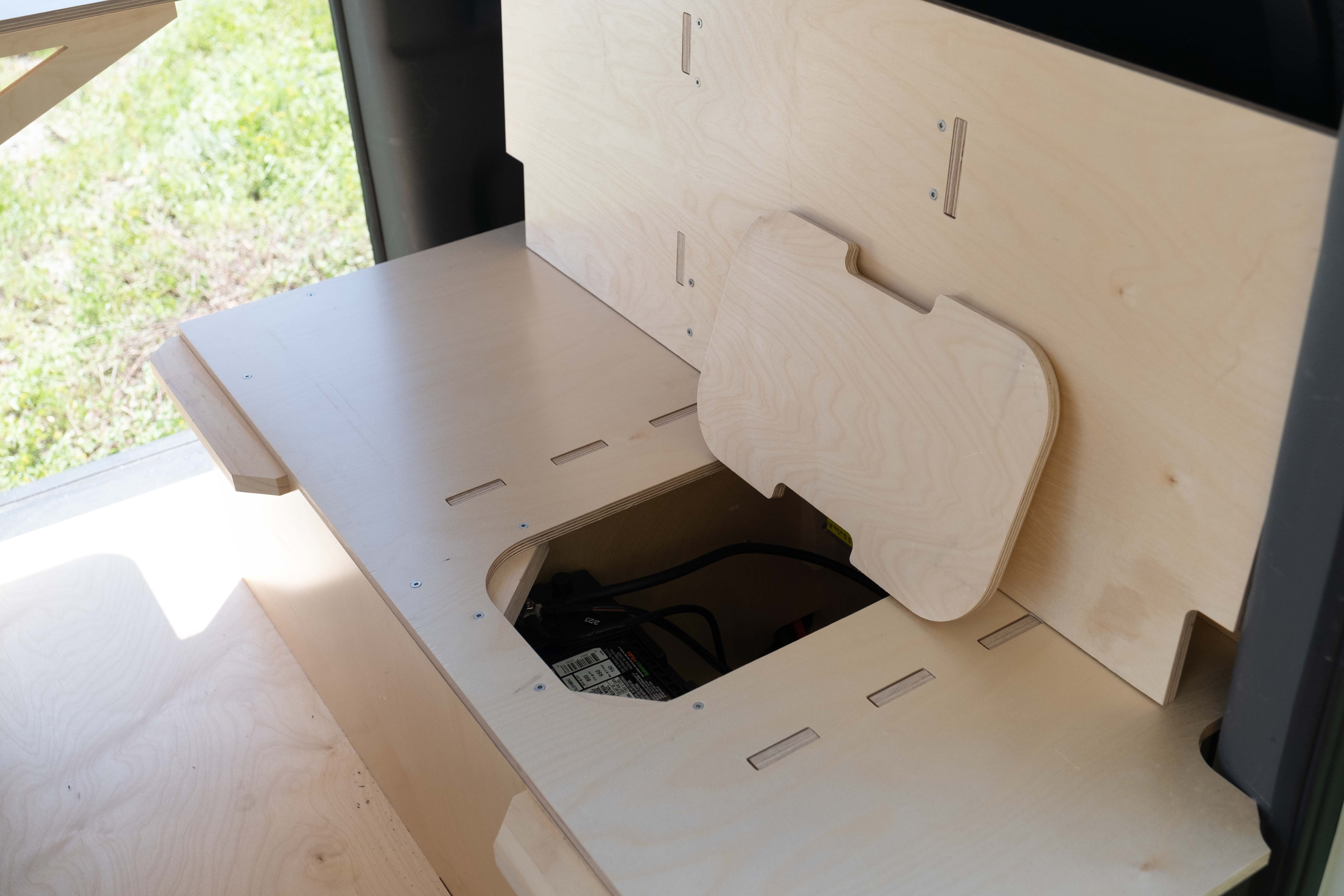

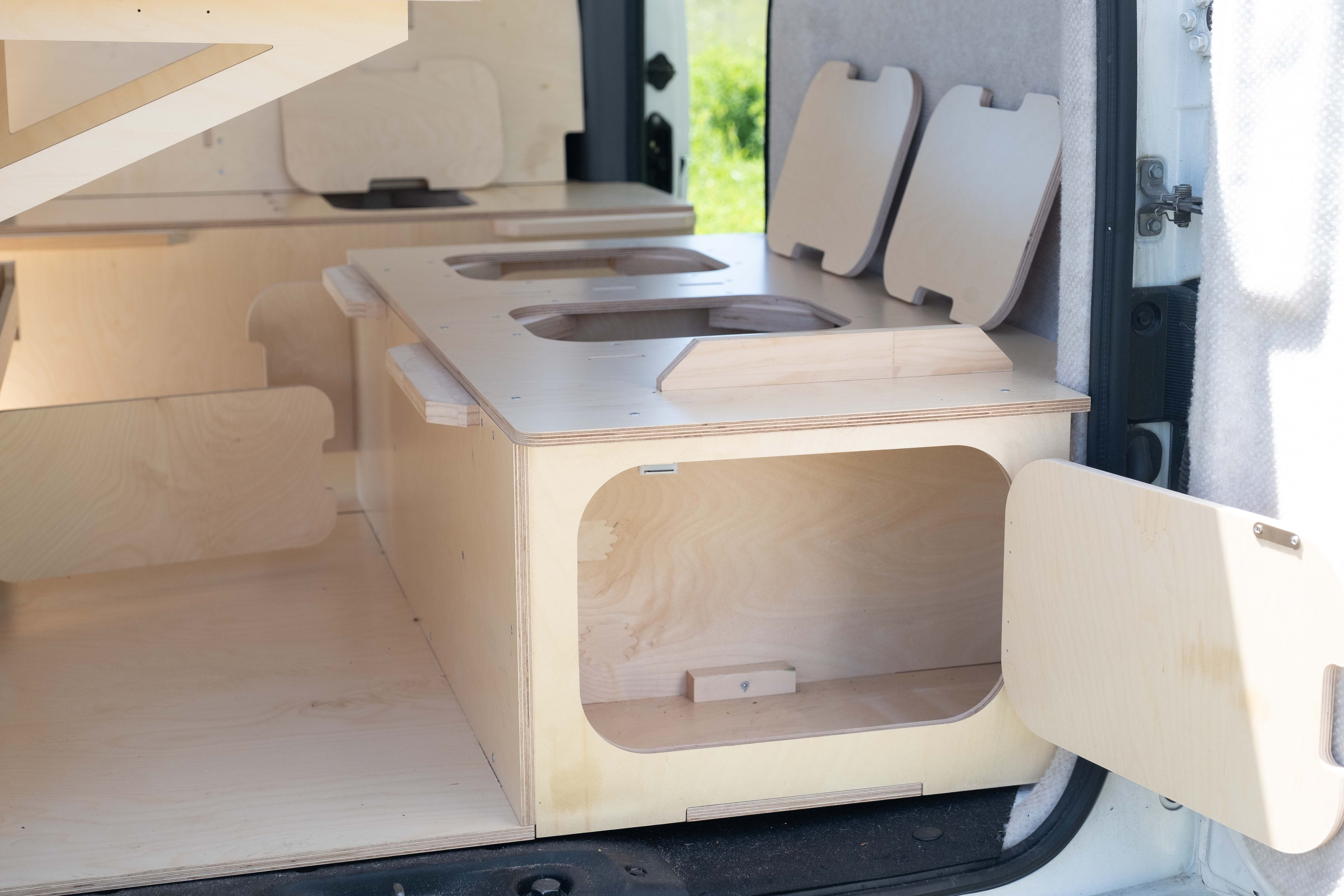

Bench seat designed for 2 people, with internal storage for battery and electrical component storage.

Appliances

WATER STORAGE

Water Storage Cabinet volume 4.2 ft3
Water Storage Dimensions: 23.5” deep, 11.25” wide, 27.75” tall (not including sink depth)

We recommend either: two 6 Gallon water containers (1 fresh, 1 grey) or two Dometic 11L Hydration Water Containers (compatible with the Dometic Go Hydration Faucet for fresh water)

SINK & FAUCET

Pre-Cut Sink Opening: 12.375” Diameter Circle
Recommended Sink: RecPro 13” RV Round Stainless Steel Kitchen Sink
Please see this link to the recommended sink

Recommended Faucet: Dometic Go Hydration FaucetPlease see this link to the recommended faucet

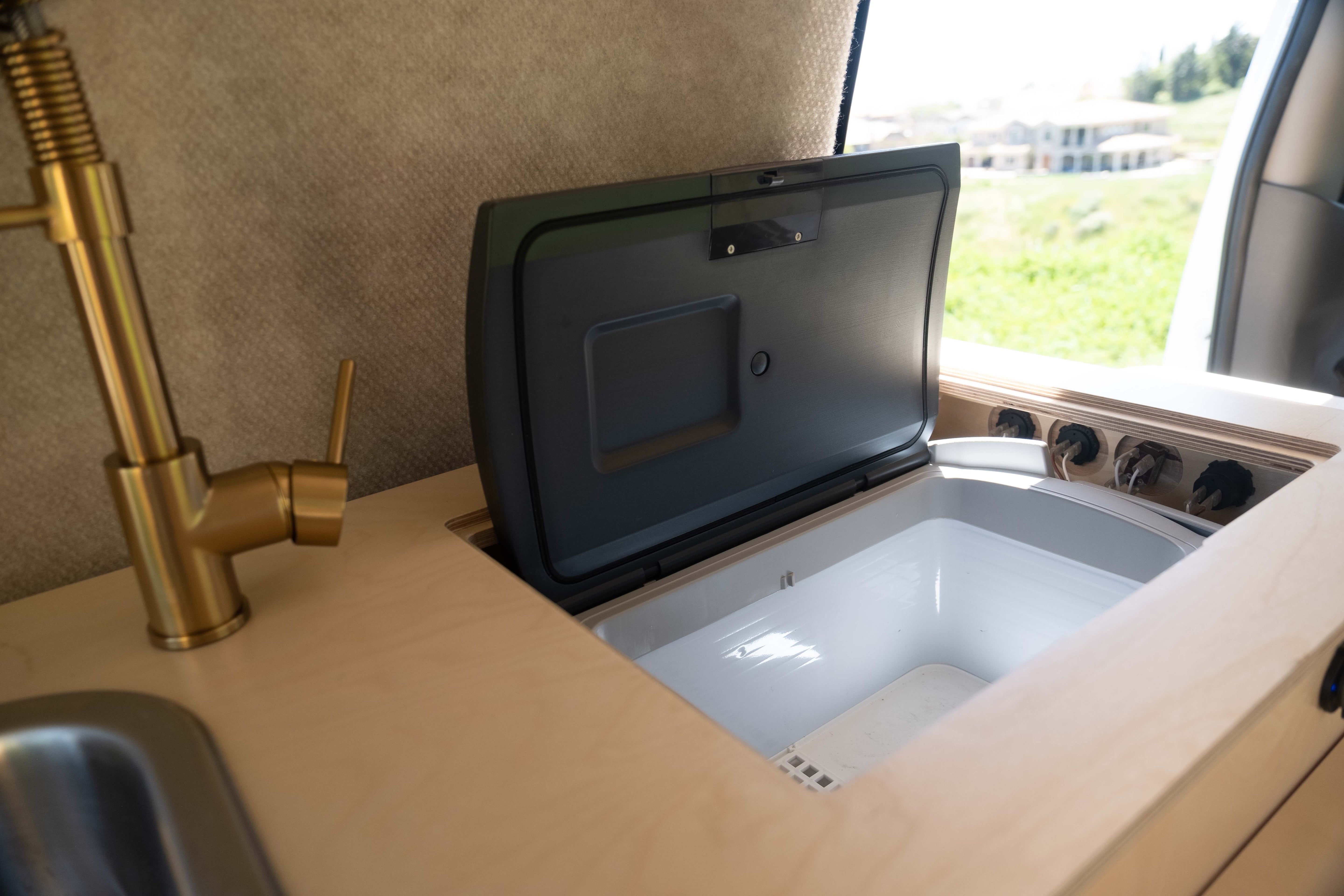

FRIDGE

Pre-cut Fridge Opening: 12.5” wide, 18.5” Length
Fridge Depth: 16.25”
Recommended fridge: Megiu 18-Quart Compressor Cooler

ELECTRICS (OPTIONAL)

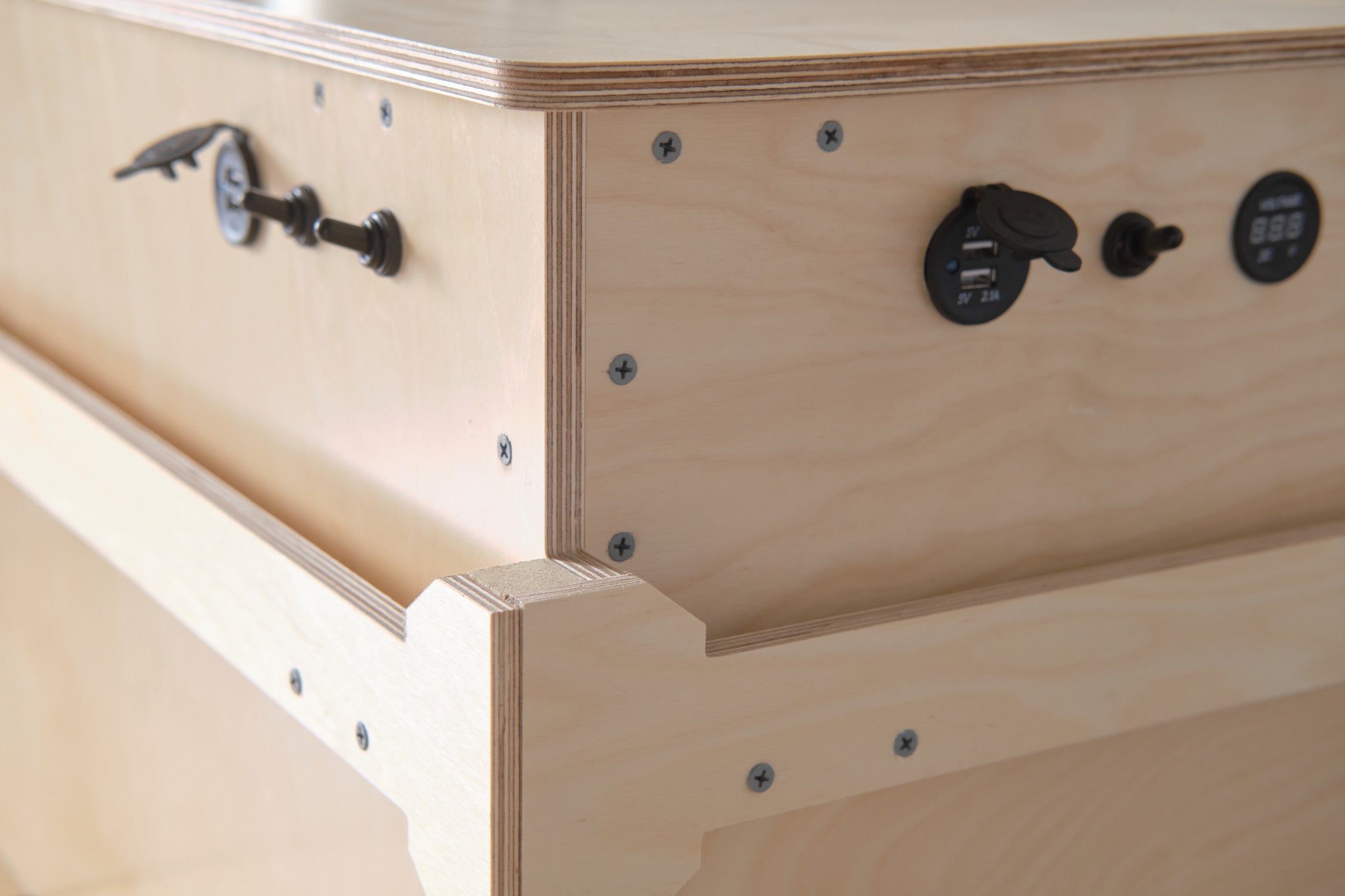

The VanLab Integrated Wiring Loom (Wiring Harness) is everything you need to automatically charge your leisure battery (charge-while-you-drive) and power your fridge, water pump, roof air fan, charge your phone and monitor your battery health.

Our integrated wiring loom is compatible with pre-cut holes in our cabinetry kits. The wiring loom is compatible with lead acid & lithium ion batteries (DC/DC charger needed). It is compatible with external power packs and solar charging (DC/DC charger needed).

The wiring loom includes

Power supply to fridge, water pump and roof air fan
2 x Double USB Chargers (USB and USB C)
Leisure Battery and Start Battery Voltage readouts
All switches, fuses, fuse board and circuit breakers for protection
Large battery isolator switch
Voltage Sensitive Relay (VSR) for automatic charge-while-you-drive
All wires are labelled and factory fitted with the required connectors.

The wiring loom does not include the leisure battery, DC/DC charger or inverter.

We cut out the middle man

VanLab saves you time, money, and effort with a simple, drag-and-drop system designed specifically for your vehicle. By combining expert knowledge, real-world experience, and thoughtful design, every component is engineered to fit perfectly straight out of the box.

Unlike traditional custom builds that require lengthy planning and modifications, VanLab removes the complexity—so you can get your van adventure-ready quickly, easily, and cost-effectively.

Read about us

Affordable

Investment by vanlab into each product, automated manufacture.

Expertly Crafted

Our experts have designed it with years of experience, specifically for USA road trips.

Efficient

Designs are pre-programmed into our machine and shipped to the door.

Premium

Cheaper manufacturing process allows us to invest more cost into quality materials.

Our Collaboration with Kia

FAQs

Is the Nissan NV200 a good van for camper conversions?

Yes—the Nissan NV200 is one of the most popular compact vans for camper builds. It’s affordable, fuel-efficient, and easy to drive in cities or tight spaces, while still offering enough room for a cleverly designed living, kitchen, and sleeping setup. It’s a great option if you want a simple, practical entry into vanlife.

How does the layout work in such a small space?

The kit uses a flexible design built around two French Cleat tables that can be repositioned in seconds. This allows you to switch between a bed, kitchen workspace, lounge area, or even a small office—no tools required. It’s all about maximizing functionality while keeping the space open and adaptable.

What is the bed and kitchen setup like?

The kit converts into a full-length north-south bed (78" x 39"), running from the rear doors to the front seats. The kitchen includes space for a compact fridge like the ENGEL MD14 15 Quart Portable Refrigerator, along with a sink such as the RecPro 13” RV Round Stainless Steel Kitchen Sink and a Dometic Go Hydration Faucet. It also features dedicated storage for fresh and grey water, making it a complete yet compact setup.
